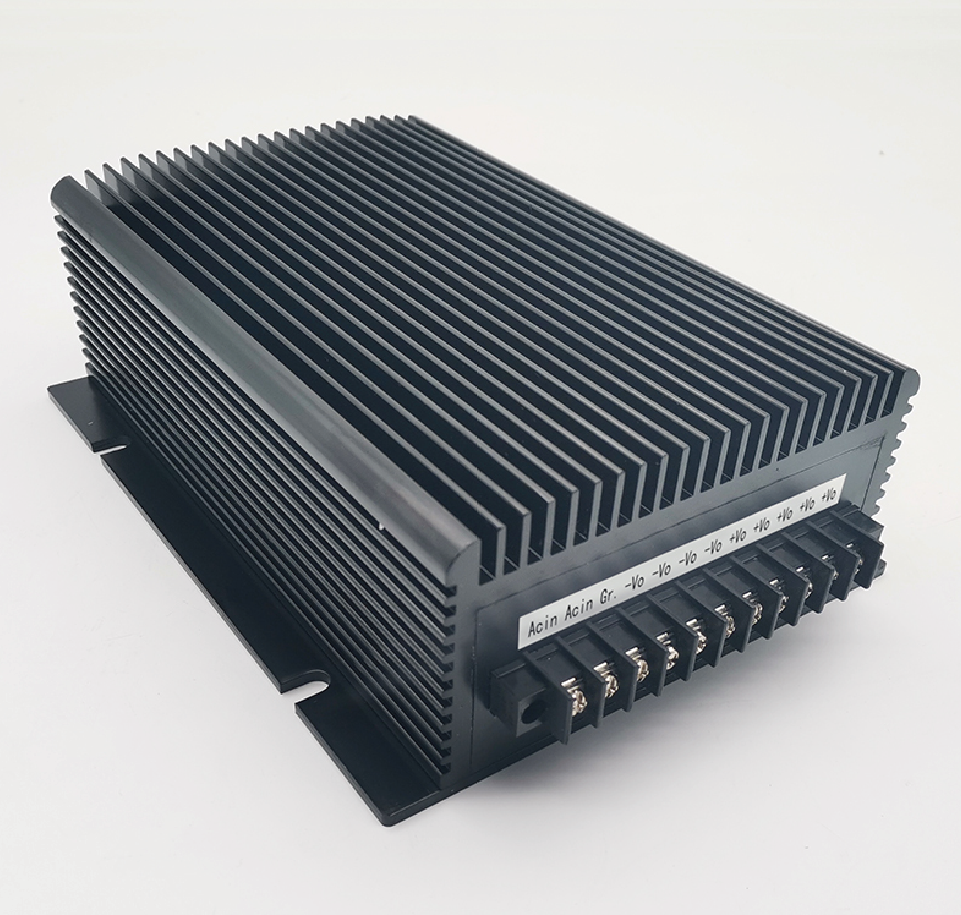

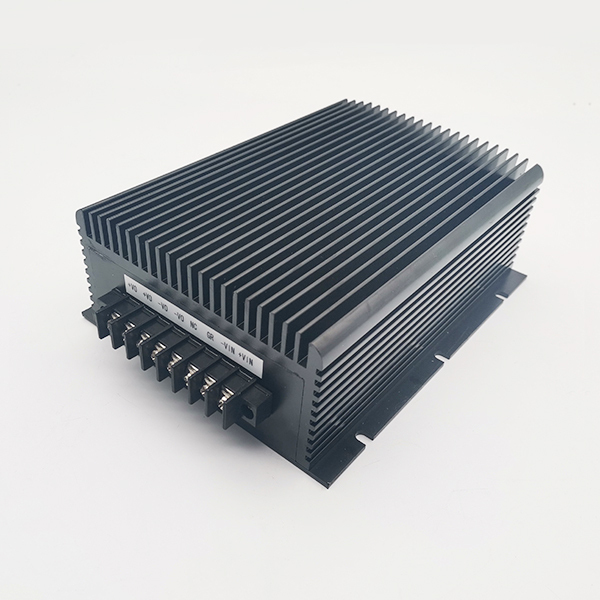

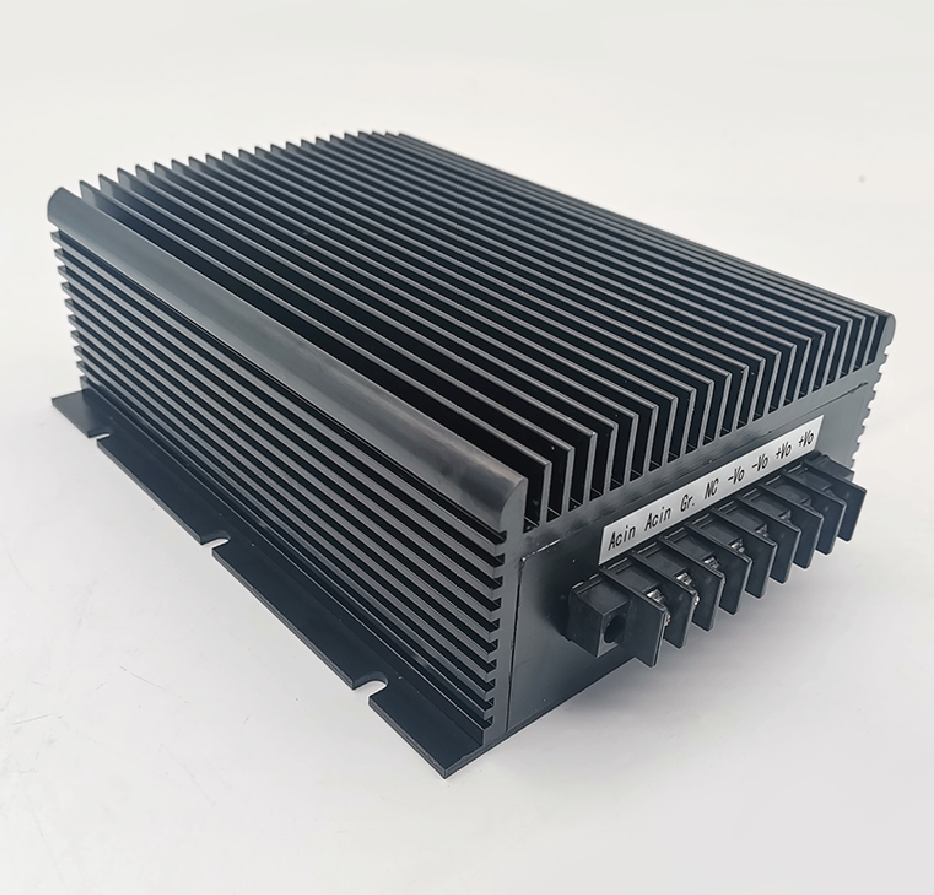

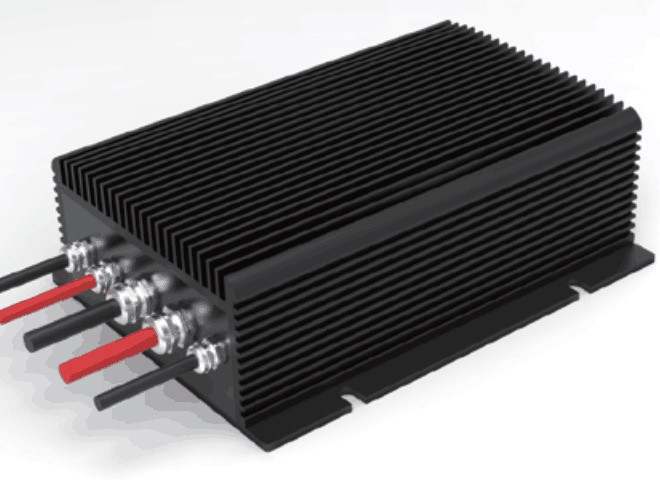

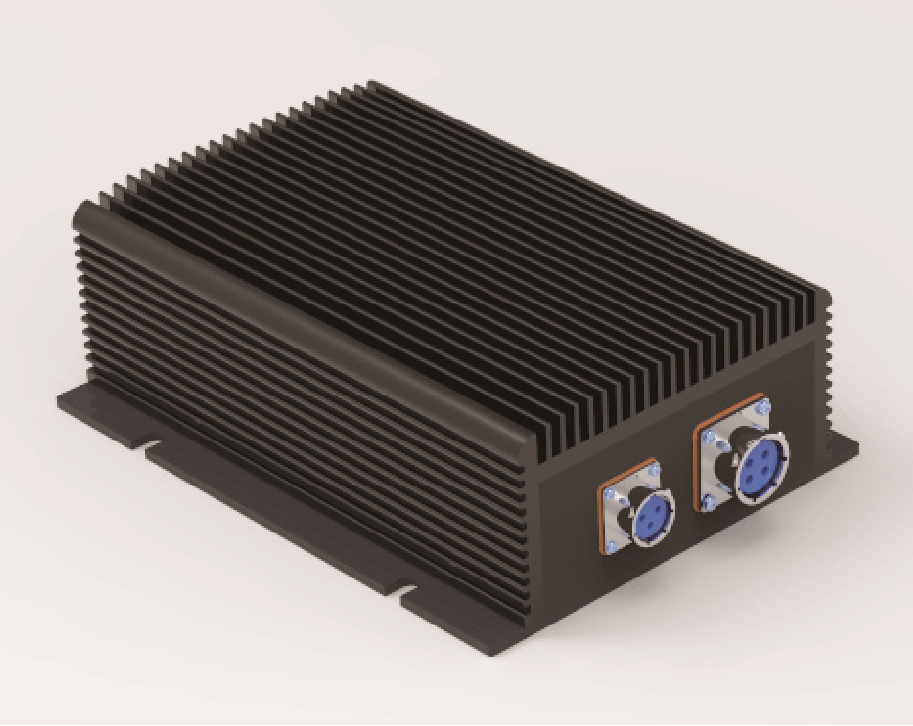

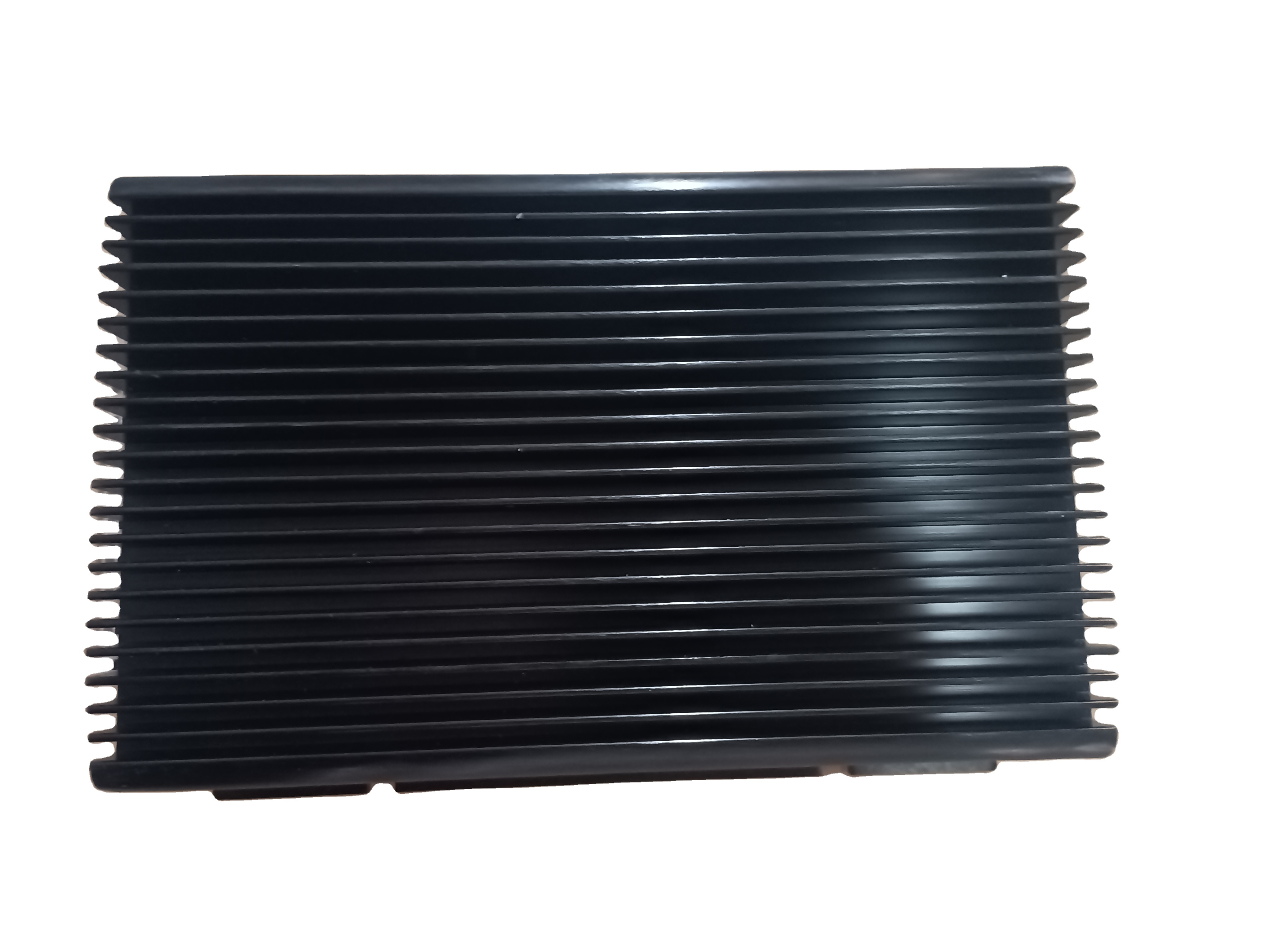

1000W 48V DC DC Converter High Power Step Down Power Module

SKU: 105866843214
0.0 (0)
0 Sold
$255.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Color:
    Black
  • Output Power:
    1000 W
    Please select the information you wantX
Quantity:
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
1/1
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • 1000W 48V DC DC Converter High Power Step Down Power Module
  • Description

Key attributes

Input Voltage
48V
Output Current
83A
Output Voltage
VARIOUS
Place of Origin
Jiangsu, China
Model Number
PDB1000-H3
Brand Name
PengTu 1000w 48v dc-dc converter
Application
Industry, Industrial Equipment
Efficiency
86%
Output Frequency
160-200KHz
Output Type
Single
Protection
Overcurrent Protection, Overvoltage Protection, Over Temperature Protection, Short Circuit Protection
Product Name
1000w 48v dc-dc converter
Size
240*182*81MM
Voltage Set-point Accuracy
±1%
Line Regulation
±0.2%
Output current Limiting
120%(Typ)
Isolation Resitstance
200MΩ
MTBF
>500000h

Packaging and delivery

Selling Units
Single item
Package size per batch
43X36X28 cm
Gross weight per batch
20.000 kg

Product descriptions from the supplier

Product Description
Model Number
PDB-H3 Series
Output Power
500-1000W
Output Type
Single or Dual
Input Voltage
12~110V
Output Voltage
5~110V
Output Frequency
160~200KHz
Output Current
1~10A
Product Name
DC DC  power converter
Warranty
2 years
Color
black

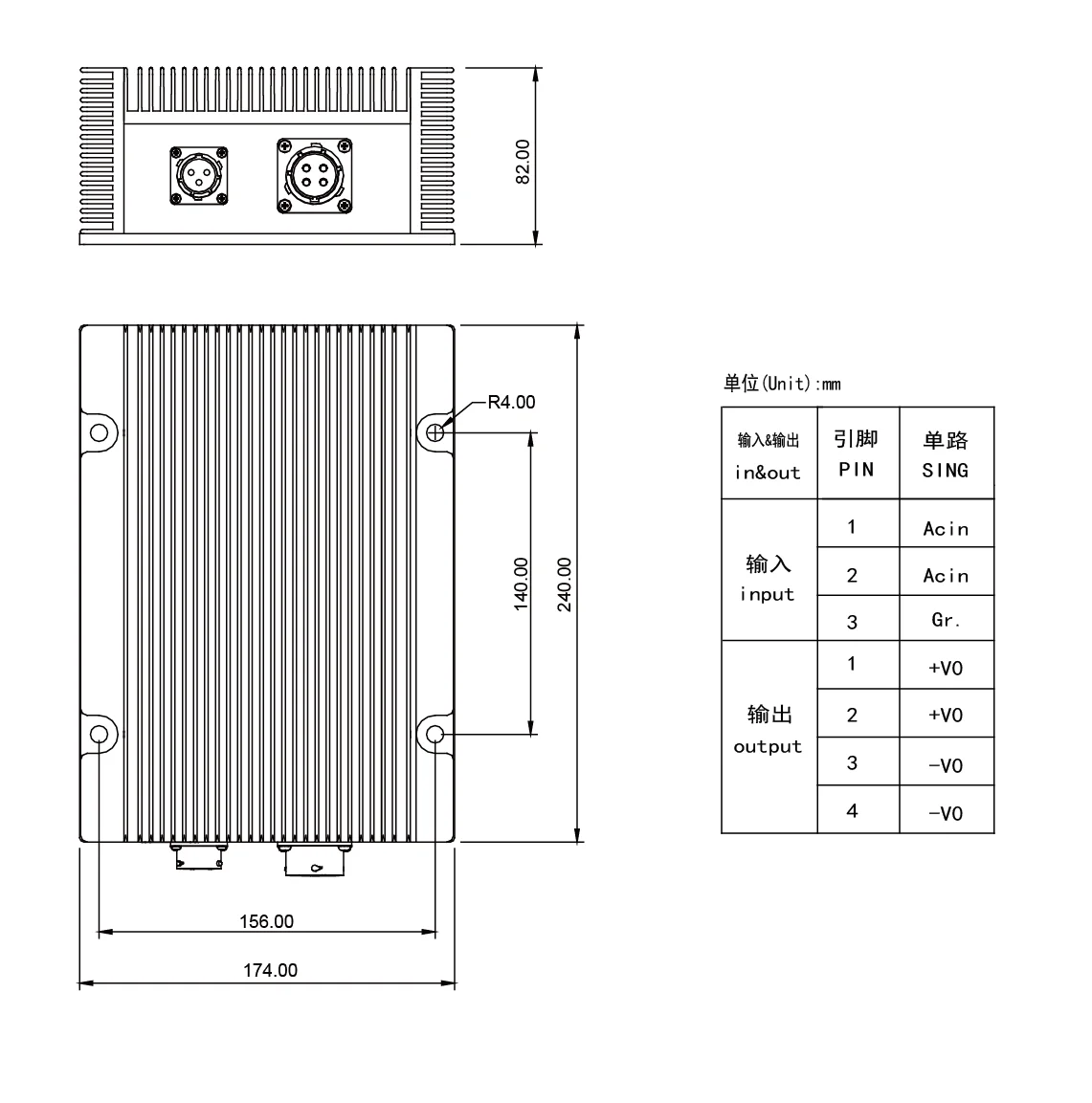

Dimension
240*182*82mm
Specification
Features

* Π type input filter
* 2X voltage input
* Output short circuit protection
* Easy installation, single side pin out
* Best case connecting mode
* Design for high reliability, ling lifetime

Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal
load.

Input Characteristic

Voltage range
12VDC (Normal Rated Value): 9 ~ 18 VDC
24VDC (Normal Rated Value): 18 ~ 36 VDC
110VDC (Normal Rated Value): 66 ~ 154 VDC
48VDC (Normal Rated Value): 36 ~ 72 VDC
600VDC (Normal Rated Value): 400 ~ 800 VDC

Output Characteristic

* Voltage set-point accuracy ……………… ±2%
* Line Regulation (Main) ……….........……… ±0.5%
* Load regulation (Main) ………........…..........±0.5%
* Output Current Limited ................................. 120% (Typ)
* Output current …………………………………5-80A for optional
* Output voltage …………………………………5-110V
* Power ……………………………………………500-1000W

General Characteristic

* Switching frequency …………………… 100-200 KHz
* Isolation resistance …………………… 200 MΩ
* Isolation voltage * Input-output:>1500 VDC
* Input-case:>1050 VDC
* Output-case:>500 VDC

* Environmental Characteristic * Substrate Working Temperature ………Industry: -25-+85℃
M I: -40-+85℃

M II: -55-+85℃
* Storage temperature …………………… Industry: -45~ +105℃

M: -55-+105℃

Protection features
Input undervoltage protection Output overcurrent protection
Output over voltage protection
Output short circuit protection
Over temperature protection

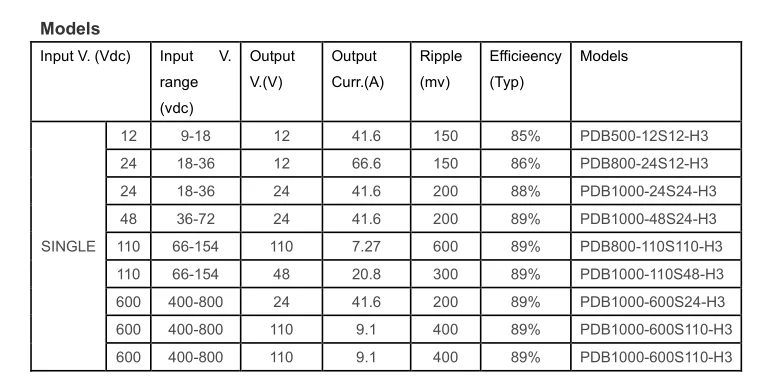

Product Specifications
Product Features
Product Application
Company Profile
00:14
00:14
Why Choose Us
30pcs 24vdc to 24vdc 3a 75W power converter/ carton (it's ok according to your requirement)
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(20.00%),Eastern Europe(15.00%),Western Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Mid East(6.00%),Eastern Asia(5.00%),South Asia(5.00%),South America(4.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
ACDC Converter,DC DC Converter,EV on board charger,battery charger,Power Supply

4. Why should you buy from us not from other suppliers?
We are a manufacturer specializing in power product development, design, production, sales and service company. We has independent research and development of AC/DC, DC/DC switching power supply and EV on board charger. Various products are widely used.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Korean
