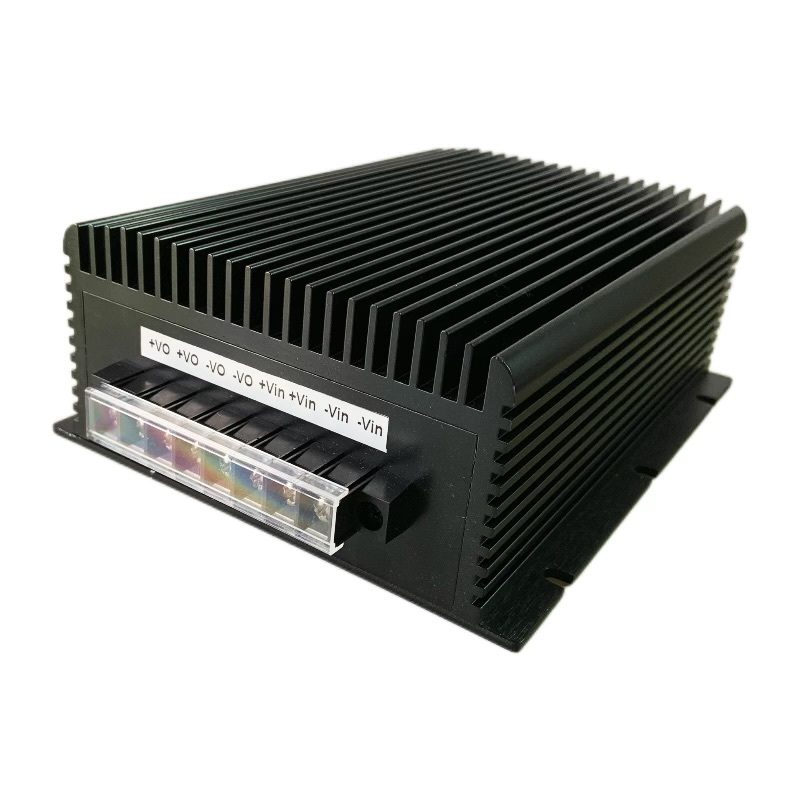

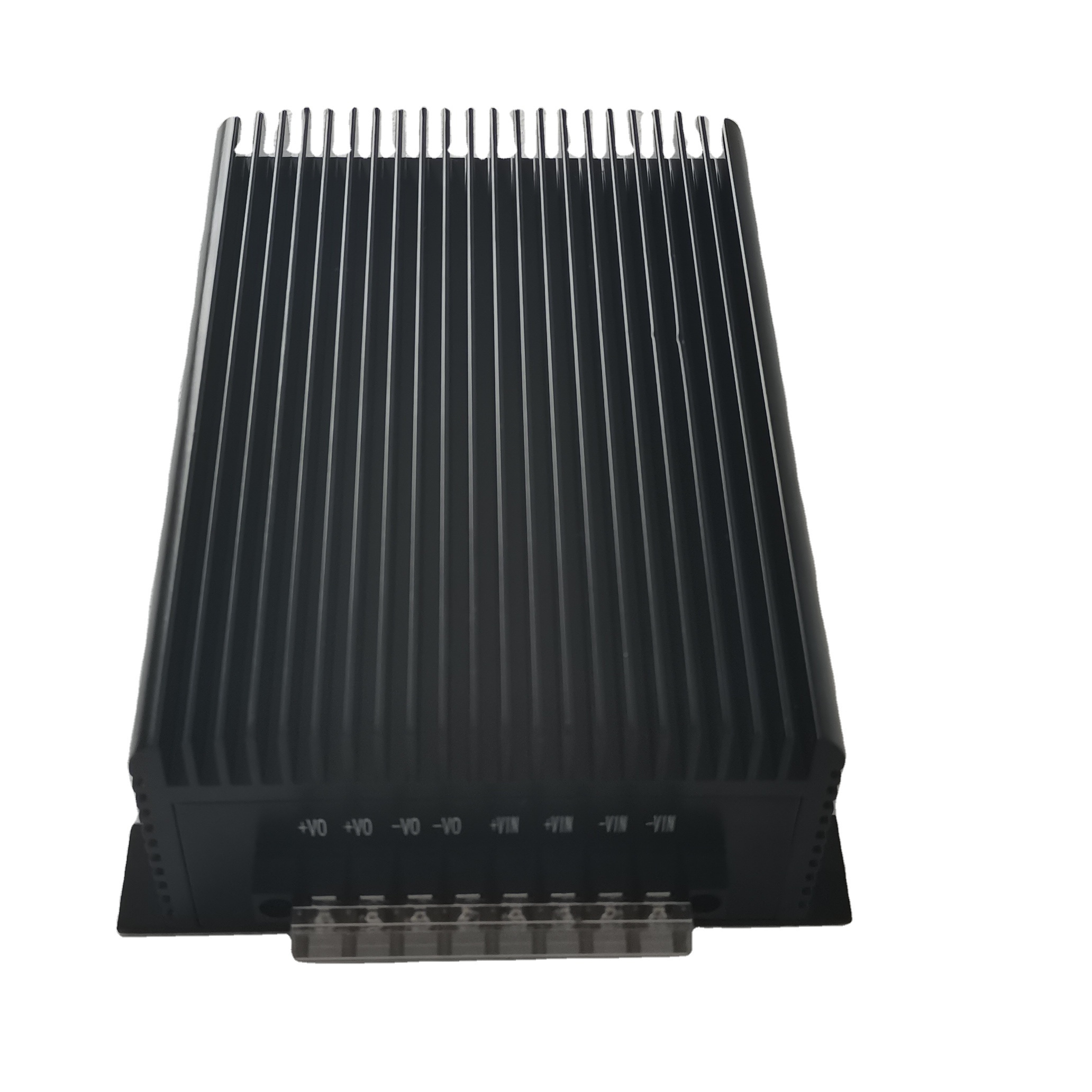

110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module

SKU: 106058490203
0.0 (0)
0 Sold
$110.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Color:
    Black
  • Output Power:
    500 W
    Please select the information you wantX
Quantity:
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
1/1
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • 110S12 500W Isolated DC DC Converter 66-154VDC to 12VDC 41.6A Power Module
  • Description

Key attributes

Input Voltage
66-154VDC
Output Current
41.6A
Output Voltage
12 V
Place of Origin
Jiangsu, China
Model Number
PDB500-110S12-G3
Brand Name
PengTu Isolated DC-DC Converters
Output Frequency
160~200KHz
Output Type
Single
Type
DC-DC
Warranty
2 years
Color
black

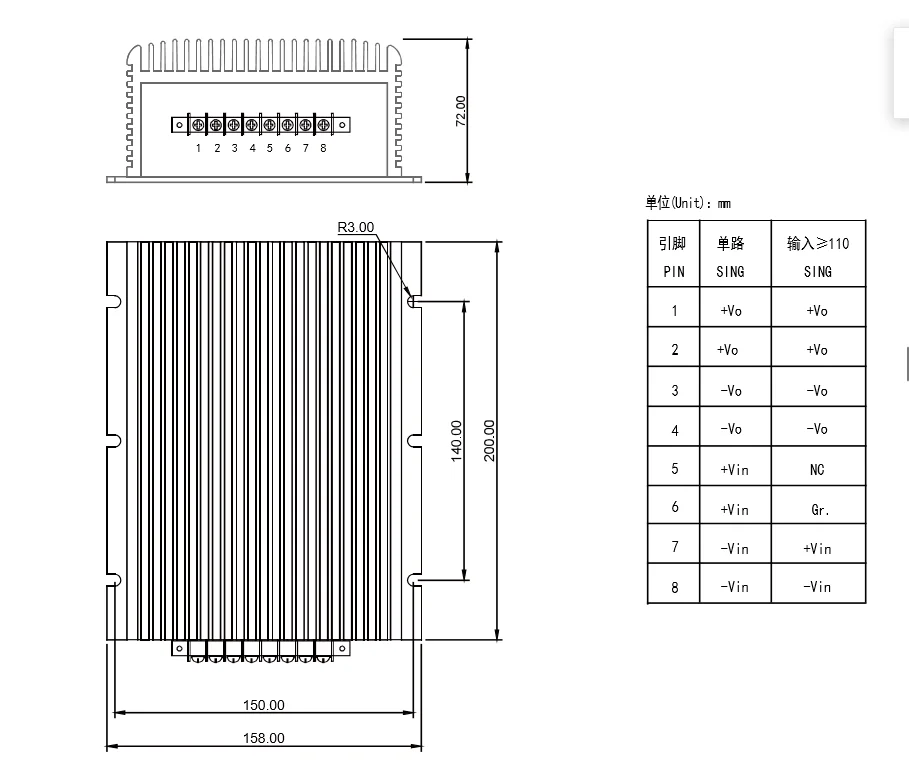

Dimension
200*158*72mm
Certificate
CE,RoHs, ect
Isolated DC/DC Converters
110S12 500W

Packaging and delivery

Selling Units
Single item
Package size per batch
20X18X15 cm
Gross weight per batch
4.000 kg

Product descriptions from the supplier

Products Description
Model Number
PDB-G3 Series
Output Power
500-600W
Output Type
Single or Dual
Input Voltage
12V-800V
Output Voltage
12V-110V
Output Frequency
100~200KHz
Output Current
5-60A
Warranty
2 years
Color
black
Dimension
200*158*72mm

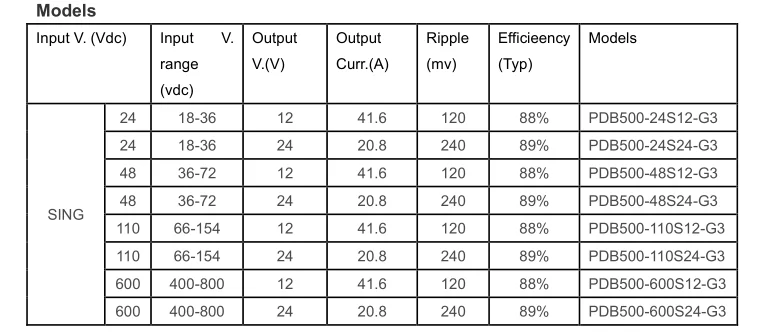

Product Specifications
Input Characteristic

Voltage range
12VDC (Normal Rated Value): 9 ~ 18 VDC
24VDC (Normal Rated Value): 18 ~ 36 VDC
48VDC (Normal Rated Value): 36 ~ 72 VDC
110VDC (Normal Rated Value): 66 ~ 154 VDC
600VDC (Normal Rated Value): 400 ~ 800 VDC

Output Characteristic

* Voltage set-point accuracy ……………… ±2%
* Line Regulation (Main) ……….........……… ±0.5%
* Load regulation (Main) ………........…..........±0.5%
* Output Current Limited ................................. 120% (Typ)
* Output current …………………………………5-60A for optional
* Output voltage …………………………………12-110V
* Power ……………………………………………500-600W


General Characteristic

* Switching frequency …………………… 100-200 KHz
* Isolation resistance …………………… 200 MΩ
* Isolation voltage
* Input-output:>1500 VDC
* Input-case:>1050 VDC
* Output-case:>500 VDC


* Environmental Characteristic
* Substrate Working Temperature ………Industry: -25-+85℃
M I: -40-+85℃
M II: -55-+85℃
* Storage temperature …………………… Industry: -45~ +105℃
M: -55-+105℃
Product Features
Product Application
Company Profile
Why Choose Us
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(20.00%),Eastern Europe(15.00%),Western Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Mid East(6.00%),Eastern Asia(5.00%),South Asia(5.00%),South America(4.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
ACDC Converter,DC DC Converter,EV on board charger,battery charger,Power Supply

4. Why should you buy from us not from other suppliers?
We are a manufacturer specializing in power product development, design, production, sales and service company. We has independent research and development of AC/DC, DC/DC switching power supply and EV on board charger. Various products are widely used.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Korean
