Home > Solar PV Power Supply > PDB-TY Series

1/1

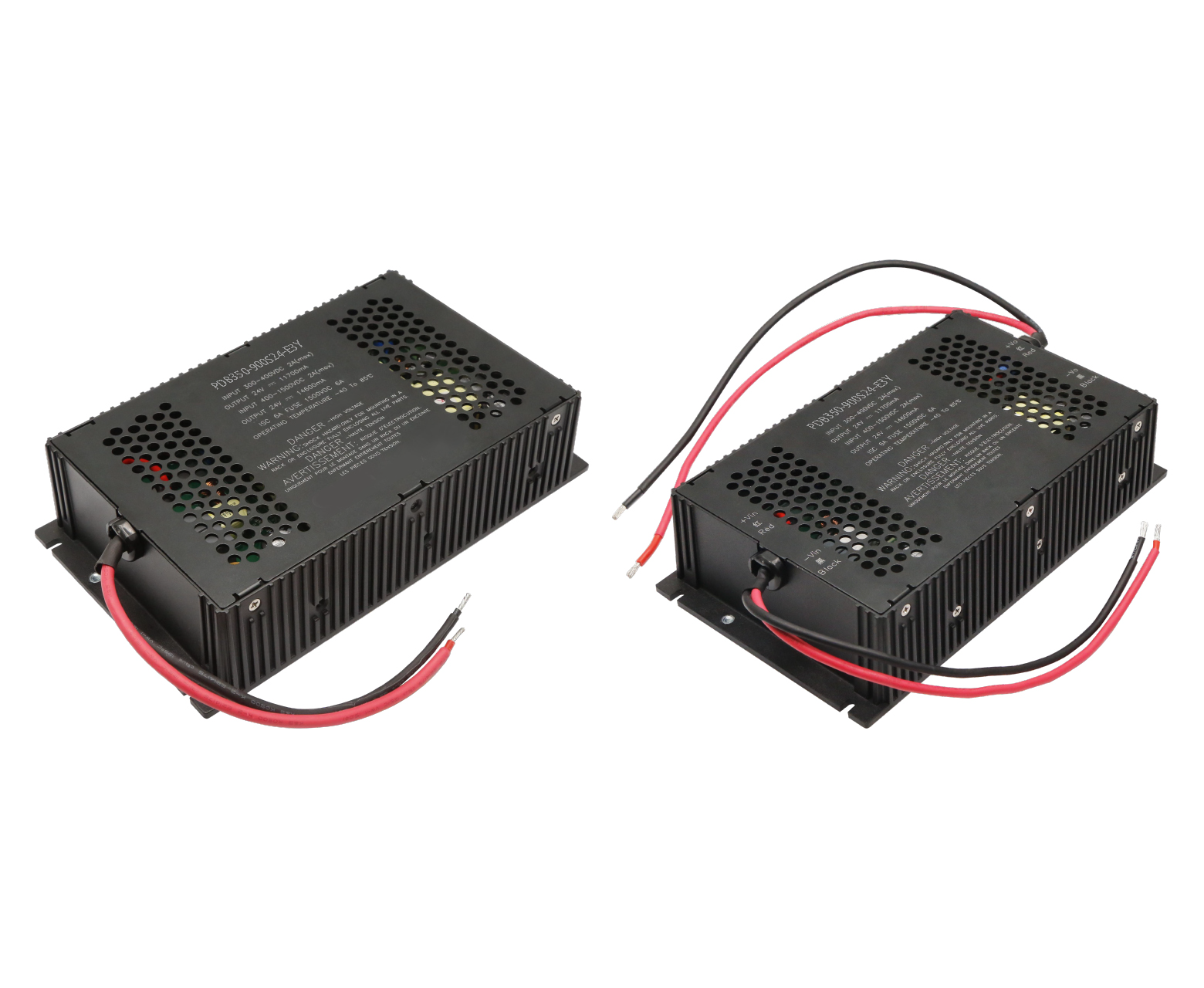

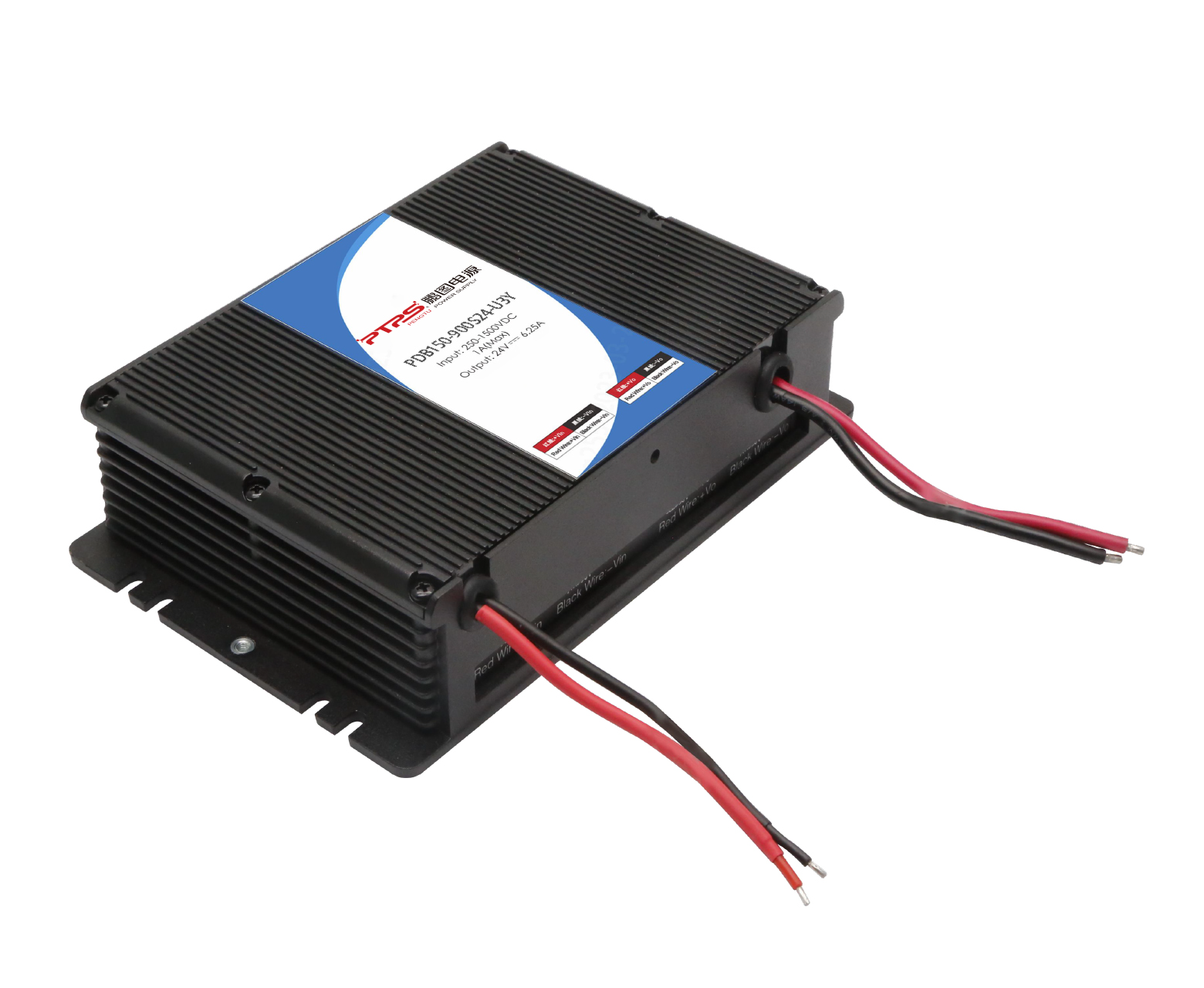

PDB-TY Series 150W

Name: PDB-TY Series 150W
Brand: MY SHOP
SKU: 1601595840838
Price: 45 USD
Availability: OutOfStock

0.0 (0)

0 Sold

$45.00

The 150W Ultra-Wide High Voltage Input DC/DC Module Power Supply (3~10A) is a high-efficiency, long-life, and highly reliable regulated power module. It supports an ultra-wide input voltage range of 250~1500VDC (momentary up to 1700VDC for 10 seconds) and features input-output isolation, under-voltage protection, reverse connection protection, output overcurrent protection, and short-circuit/overvoltage protection. Fully tested under 100% full-load aging conditions, it operates reliably in temperatures from -40℃ to +85℃. Widely applicable in photovoltaic power generation, PV inverters, energy storage systems, industrial control, and various civil applications, it provides stable and dependable working voltage for load devices.

Item	Input voltage range	Output voltage	Output current	Size
PDB120-900S12-U3Y	250-1500VDC	12V	10000mA	168111.242.5MM
PDB120-900S15-U3Y		15V	8000mA
PDB150-900S24-U3Y		24V	6250mA
PDB150-900S28-U3Y		28V	5360mA
PDB150-900S32-U3Y		32V	4690mA
PDB150-900S48-U3Y		48V	3125mA

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Color:

Black
Output Lines:

Single

SIngle
Input voltage:

250-1500
Output voltage:

12V

15V

24V

28V

32V

48V
Output current:

10A

8A

6.25A

5.36A

4.69A

3.125A

Quantity:

Add to Favorites (0)

1/1

Description

Key attributes

Phase	Single Phase	Output Frequency	160-200KHZ
Type	DC/DC Converter	Place of Origin	Jiangsu, China
Brand Name	Pengtu	Model Number	PDB-T1Y Series

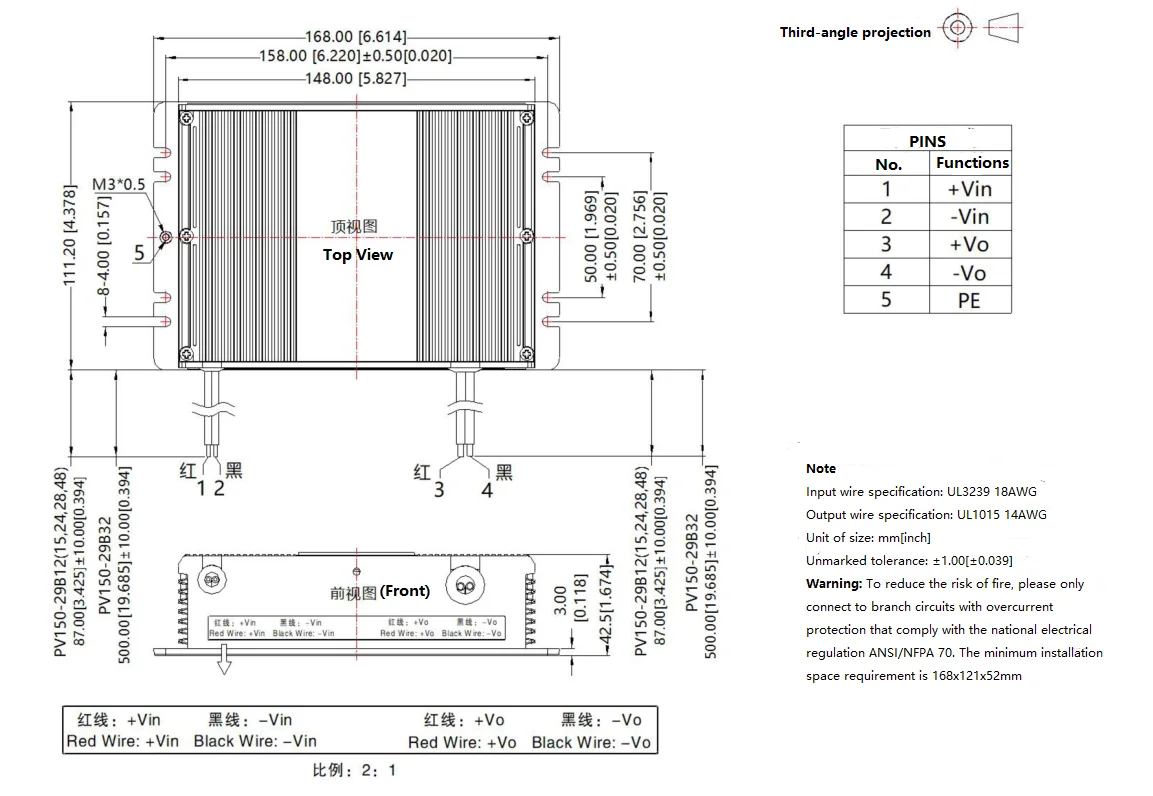

Size	168111.242.5mm	Input Voltage	200-1500VDC
Warranty	2 years	Output Current	3-10A
Certificate	CE,RoHs, ect	Output Voltage	24V/28V/32V

Packaging and delivery

Selling Units	Single item	Single package size	28X25X12cm
Single gross weight	5.000 kg

The 150W Ultra-Wide High Voltage Input DC/DC Module Power Supply (PDB-TY Series) is a high-efficiency, long-life, and highly reliable regulated power module. It supports an ultra-wide input voltage range of 250~1500VDC (momentary up to 1700VDC for 10 seconds) and features input-output isolation, under-voltage protection, reverse connection protection, output overcurrent protection, and short-circuit/overvoltage protection. Fully tested under 100% full-load aging conditions, it operates reliably in temperatures from -40℃ to +85℃. Widely applicable in photovoltaic power generation, PV inverters, energy storage systems, industrial control, and various civil applications, it provides stable and dependable working voltage for load devices.

Key Features:
* Ultra-wide input voltage: 250~1500VDC (Transient 1700VDC, lasting for 10 seconds)
* Input-output isolation
* Input under-voltage and reverse connection protection
* Output overcurrent, short-circuit, and overvoltage protection
* High efficiency, long life, high reliability
* Operating temperature: -40℃ ~ +85℃
* 100% full-load aging tested

Input Characteristic:250~1500VDC
Output Characteristic:
Voltage set-point accuracy ……………… ±2%
Output voltage range………………………±10%
Line Regulation (Main) ……….........……… ±0.5%
Load regulation (Main) ………........…..........±0.5%
Output Current Limited ................................. 120% (Typ)
Output current …………………………………2-20A for optional
Output voltage …………………………………12-48V
Power ……………………………………………120-150W

General Characteristic:
Switching frequency …………………… 160-200 KHz
Isolation resistance …………………… 200 MΩ
Isolation voltage
Input-output: >1500 VDC
Input-case: >1050 VDC
Output-case: >500 VDC

Environmental Characteristic:
Substrate Working Temperature ………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
Storage temperature …………………… Industry: -45~ +105℃

Military: -55-+105℃

Item	Input voltage range	Output voltage	Output current	Size
PDB120-900S12-U3Y	250-1500VDC	12V	10000mA	168111.242.5MM
PDB120-900S15-U3Y		15V	8000mA
PDB150-900S24-U3Y		24V	6250mA
PDB150-900S28-U3Y		28V	5360mA
PDB150-900S32-U3Y		32V	4690mA
PDB150-900S48-U3Y		48V	3125mA
