Home > Module Power Supply > High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
1/1
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
Share:

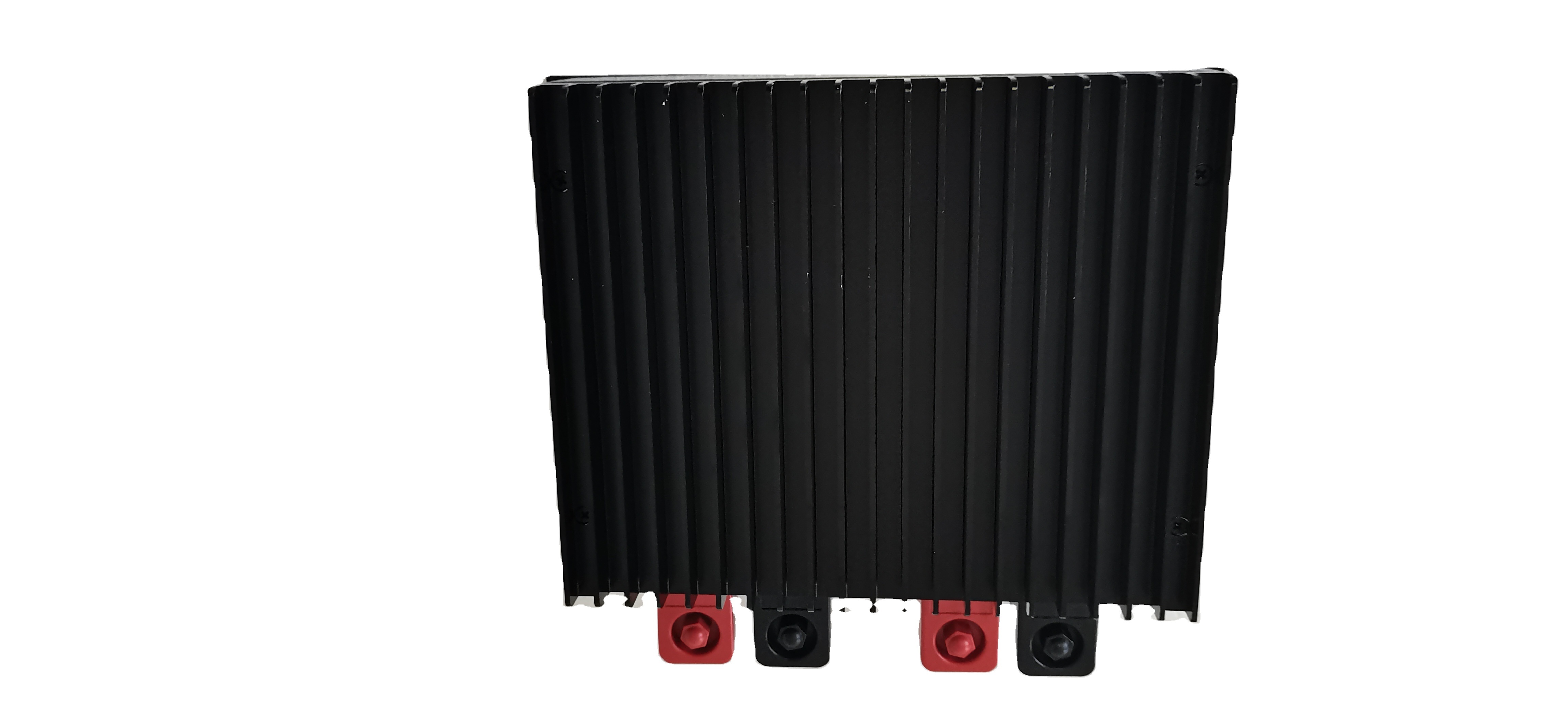

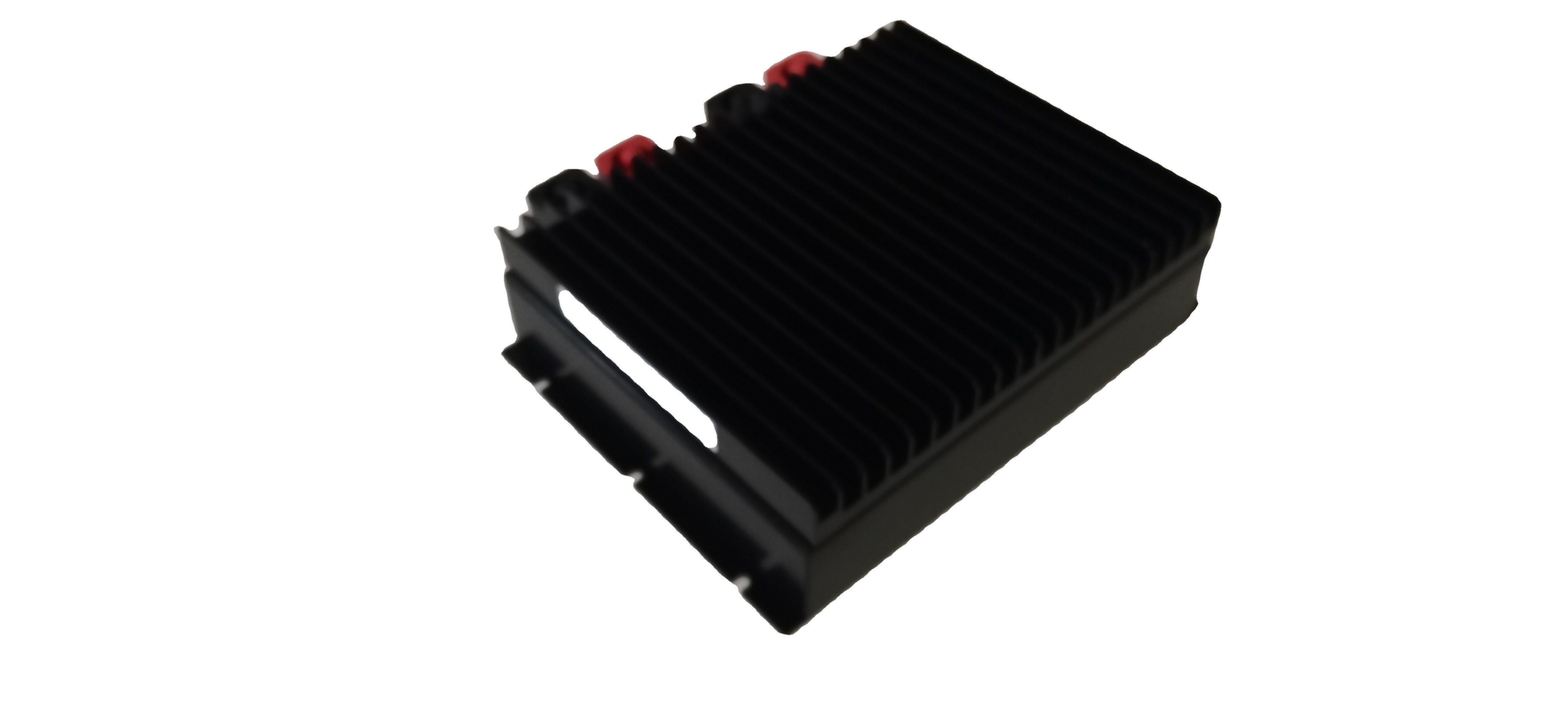

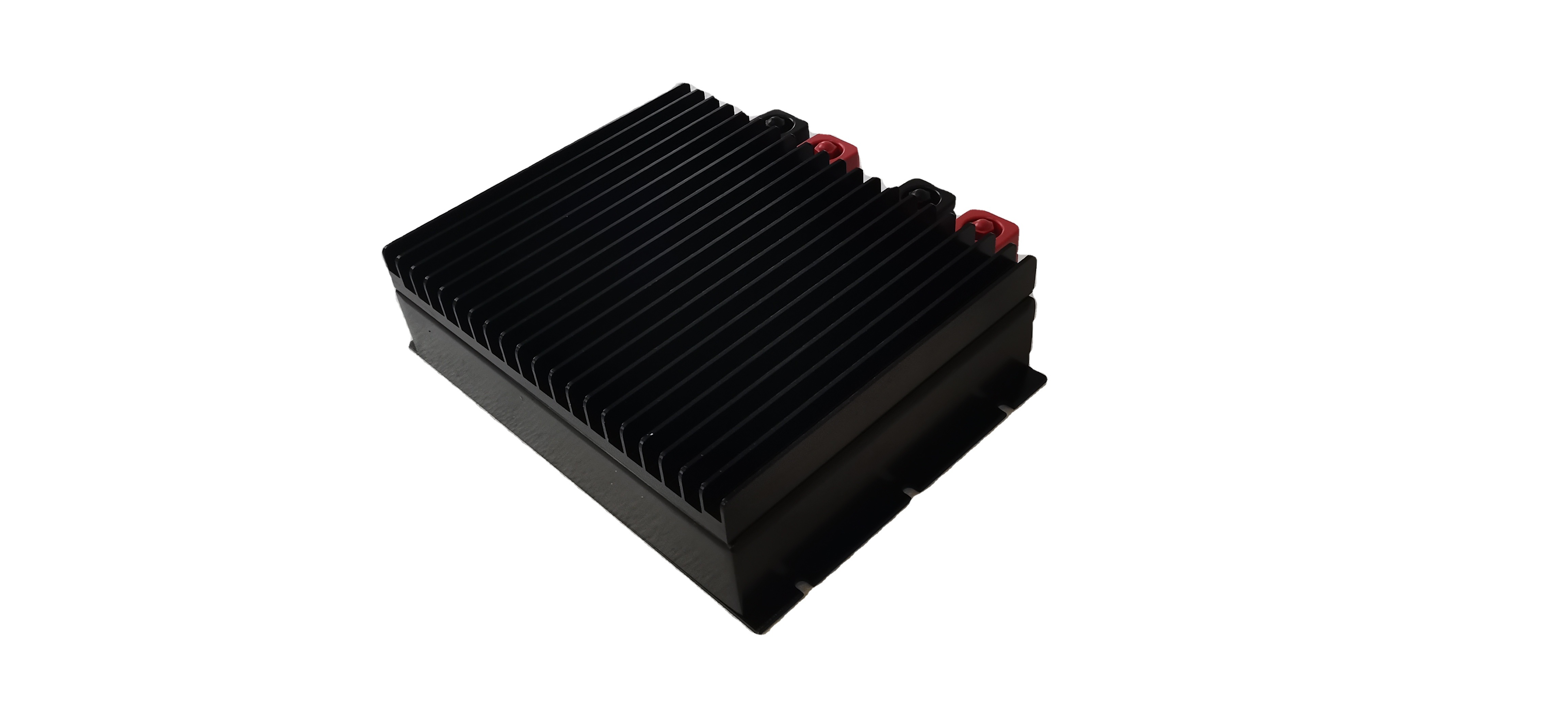

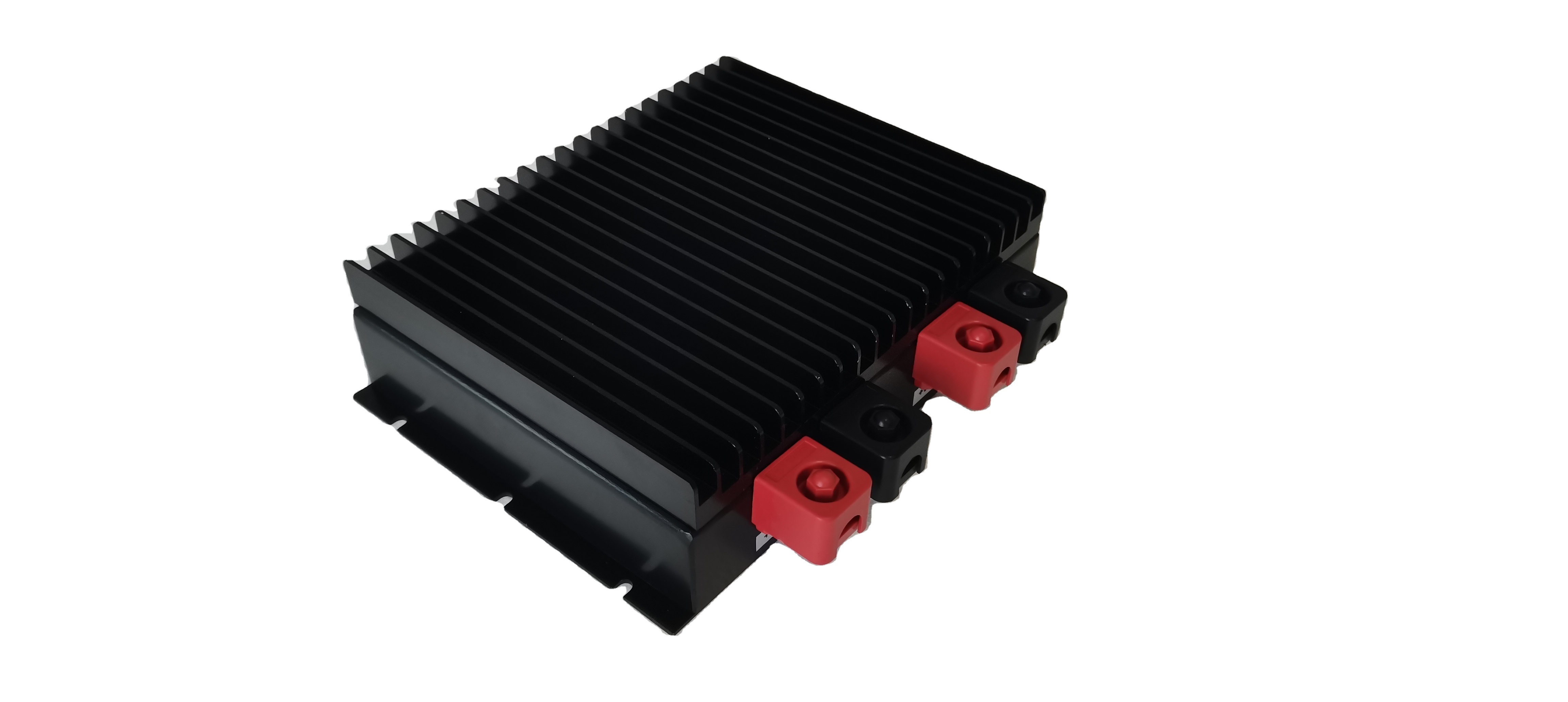

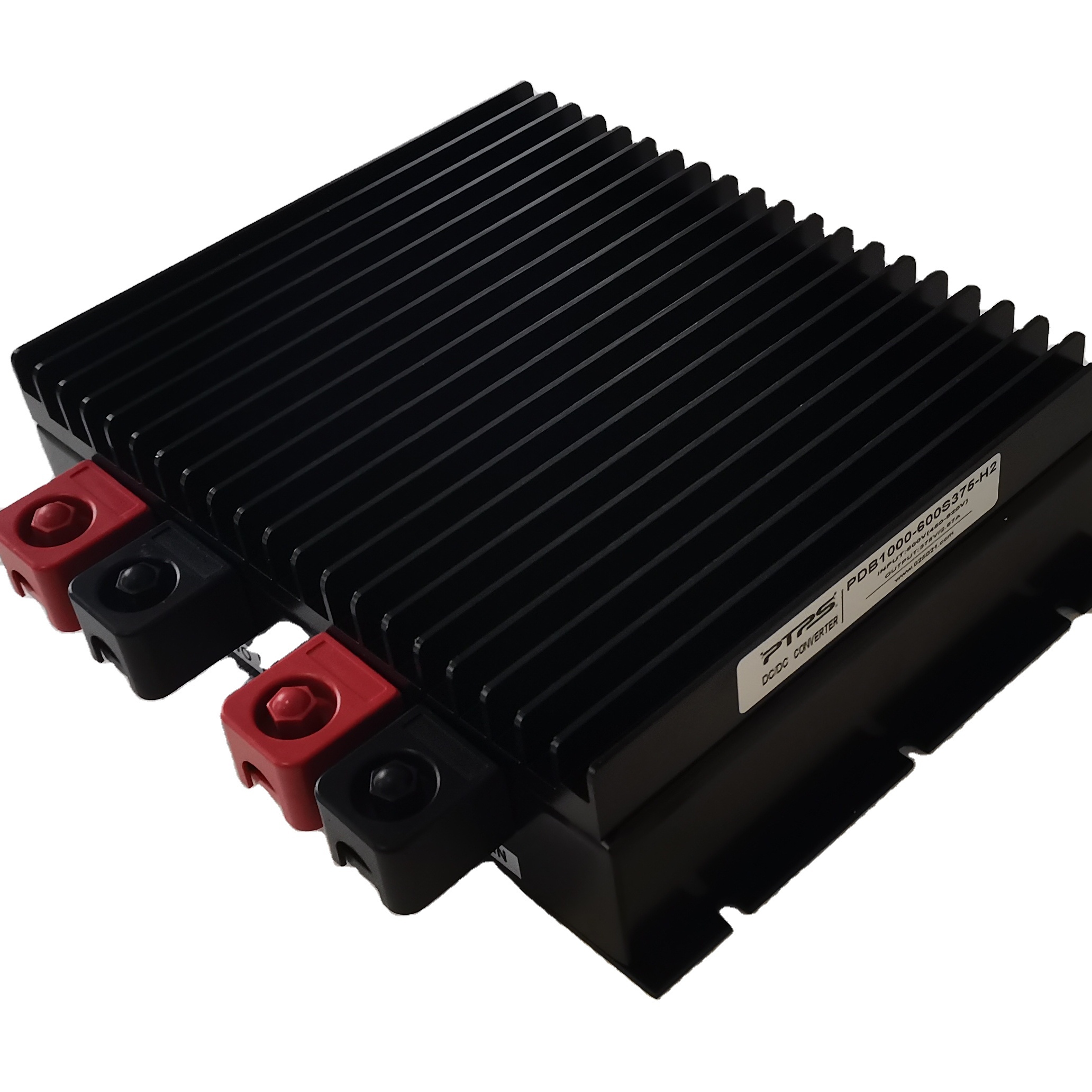

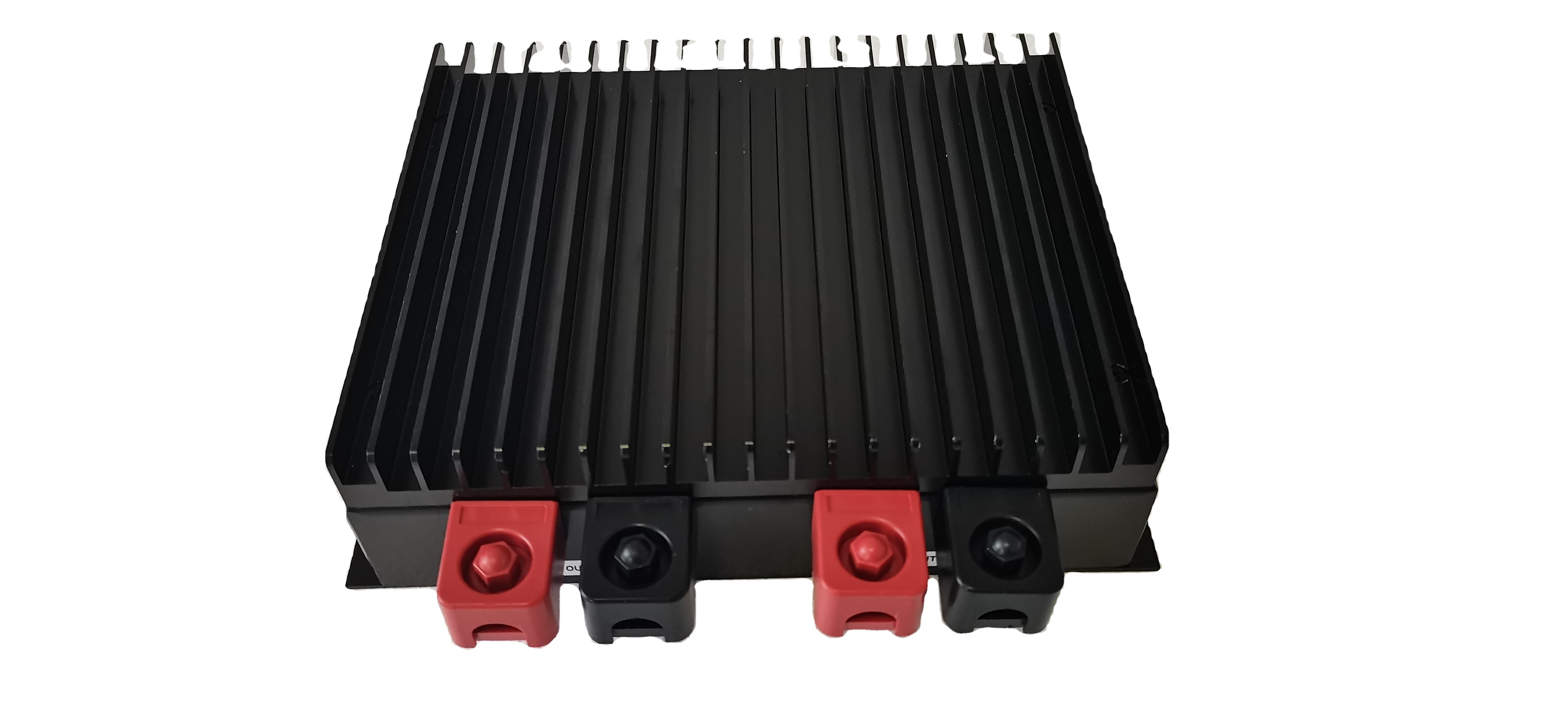

High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module

SKU: 106130096843
0.0 (0)
0 Sold
$255.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Output Power:
    1000 W
    Please select the information you wantX
Quantity:
Add to Favorites (0)
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
1/1
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • High Voltage 400-800V to 110V DC/DC Converter | 600S110 9A 1000W High Power Step-Down Module
  • Description

Key attributes

Input Voltage
400-800VDC
Output Current
9A
Output Voltage
110VDC
Place of Origin
Jiangsu, China
Model Number
PDB1000-600S110-H2
Brand Name
PengTu DC/DC converters
Output Type
Single
Product Name
DC/DC converters
Warranty
1 year
Color
black

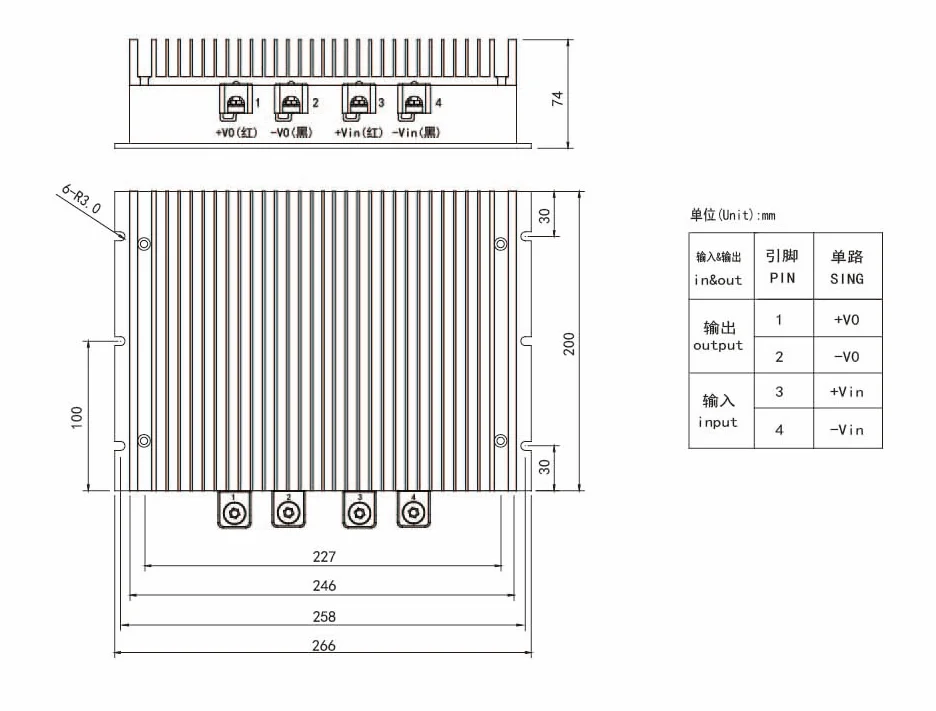

Dimension
266*200*74mm
Power
1000W
MOQ
1piece
Working Temp
-25-+85℃

Packaging and delivery

Selling Units
Single item
Package size per batch
20X18X12 cm
Gross weight per batch
6.000 kg

Product descriptions from the supplier

Products Description
Model Number
PDB-H2 Series
Output Power
600~1000W
Output Type
Single
Input Voltage
12~600V
Output Voltage
5~375V
Output Frequency
160~200KHz
Output Current
5~40A
Product Name
Module power supply
Warranty
2 years
Color
black
Dimension
266*200*72mm
Features

2times input voltage
High and low input voltage for option
Easy installation, single side pin out
Design for high reliability, long lifttime
Good apperance, good heat dissipation

Conditions: All specifications are tested under room temp. 25℃, normal input voltage and pure resistive normal load.

Input Characteristic

l Inputvoltage range……………………
18 ~ 36 VDC Rated value: 24VDC
36 ~ 72 VDC Rated value: 48VDC
66 ~ 154 VDC Rated value: 110VDC
400 ~ 800 VDC Rated value: 600VDC
Reverse Protection
Fuse Outside

Output Characteristic

l Voltage set-point accuracy ………………±1%
l Line regulation(main) …………...........…±0.2%
l Load regulation(main) …………….......…±0.4%
l Temperature coefficient …………….......±0.01%/°C
l Output current limiting …………........… 120%(Typ)
l Dynamic response ……………………… 400μs
l Output current …………………………… 2-80A
l Output voltage …………………………… 5-48V
l Power …………………………………… 600-1000W


General Characteristic

l Switching frequency …………………… 100-200 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output:>1500 VDC/1min(leakage current<5mA)
Input-case: >1050 VDC/1min(leakage current<5mA)
Output-case: >500 VDC/1min
l Environmental Characteristic
Case temperature …………………… Industry: -25-+85°C; JⅠ: -40~ +85°C;
Storage temperature …………………… Industry: -45~ +105°C; J: -55~ +105°C
Product Features
