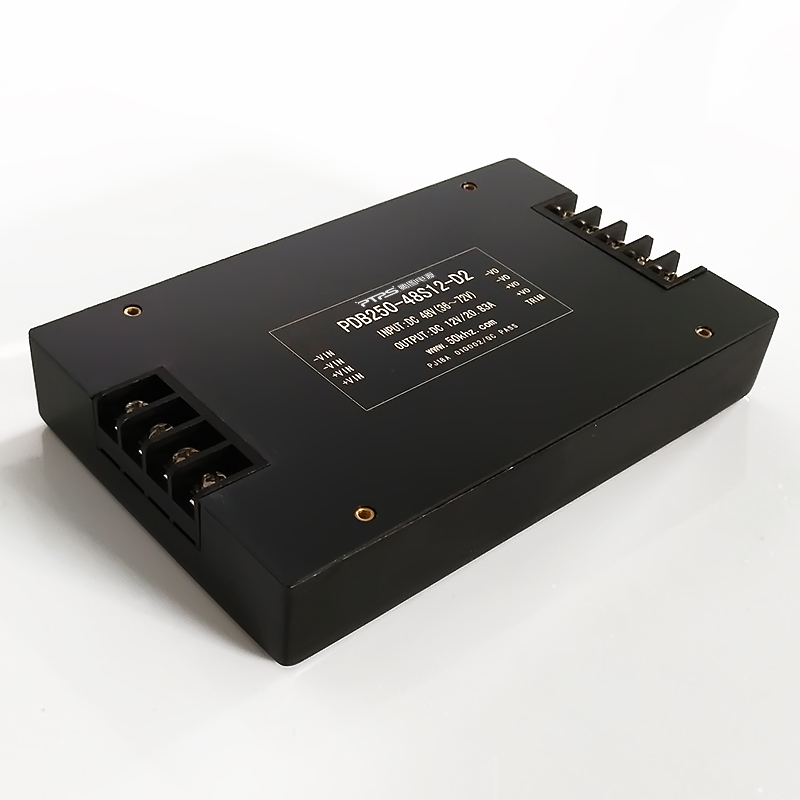

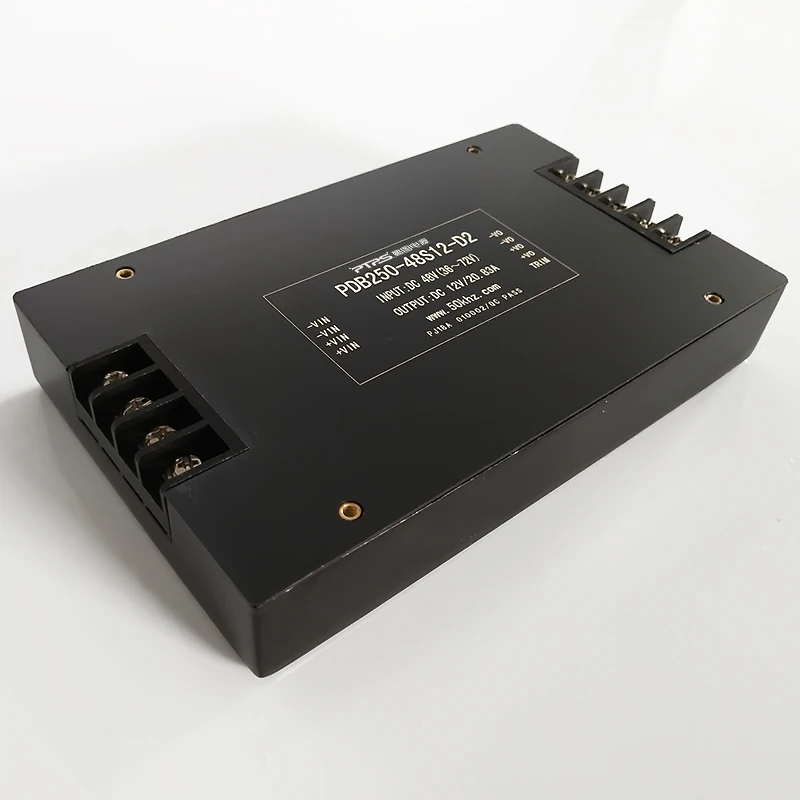

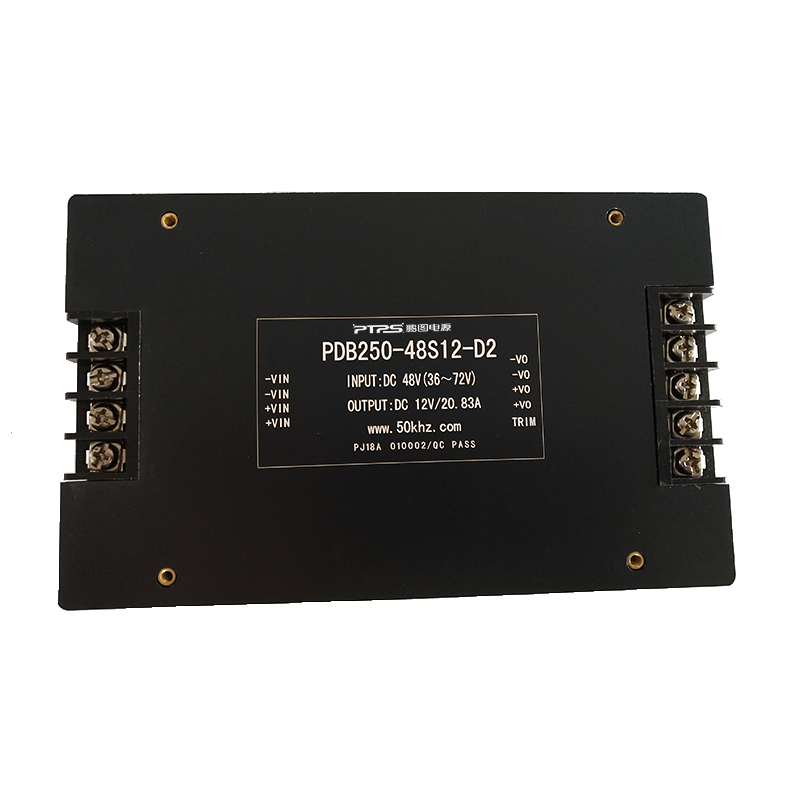

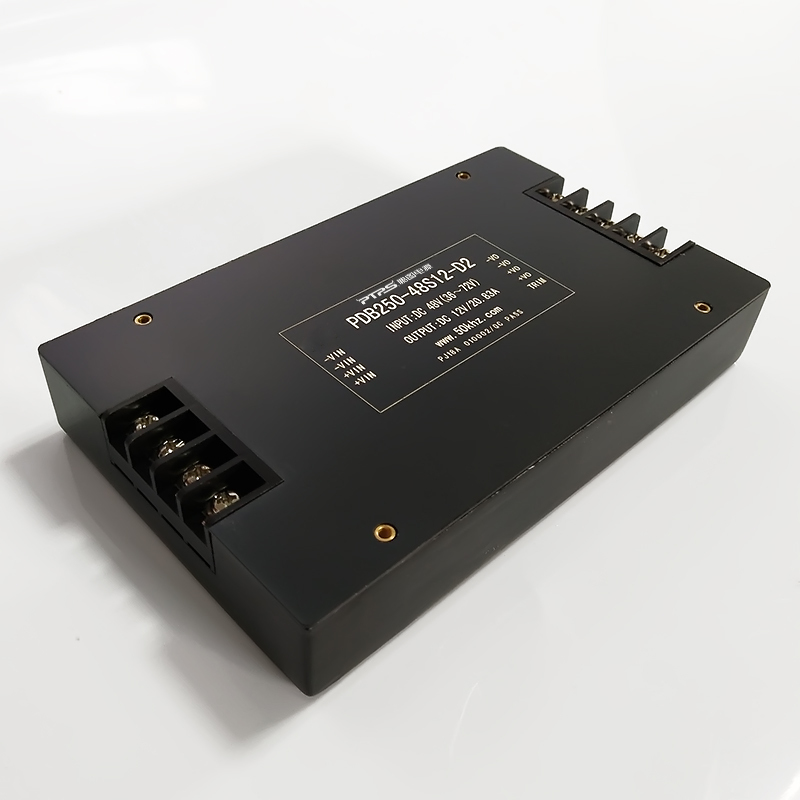

Hot Selling 250W DC-DC Converter 36-72V Input to 12V Output Step Down Reduce Voltage Power Supply

Name: Hot Selling 250W DC-DC Converter 36-72V Input to 12V Output Step Down Reduce Voltage Power Supply
Brand: MY SHOP
SKU: 107370189197
Price: 70 USD
Availability: OutOfStock

SKU: 107370189197

0.0 (0)

0 Sold

$70.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Key attributes

Input Voltage

18~140V

Output Current

6.25~15A

Output Voltage

various

Place of Origin

Jiangsu, China

Model Number

PDB-D2 Series

Brand Name

PengTu Dc Dc Converter

Output Frequency

160~200KHz

Output Type

Single and Dual

Product Name

250W DC-DC Converter

Warranty

2 years

Color

black

Dimension

159*98*27mm

Certificate

CE,RoHs, ect

Packaging and delivery

Selling Units

Single item

Product descriptions from the supplier

Products Description

Product Specifications

Input Characteristic

l Inputvoltage range…………………… 9 ~ 18 VDC Rated value: 12VDC
18 ~ 36 VDC Rated value: 24VDC
36 ~ 72 VDC Rated value: 48VDC
70 ~ 140 VDC Rated value: 110VDC
9 ~ 36 VDC Rated value: 18VDC
Reverse Protection
Fuse Outside

Output Characteristic

l Voltage set-point accuracy ………………±1%
l Line regulation(main) …………...........…±0.2%
l Load regulation(main) …………….......…±0.4%
l Temperature coefficient …………….......±0.01%/°C
l Output current limiting …………........… 120%(Typ)
l Dynamic response ……………………… 400μs
l Output current …………………………… 2-10A
l Output voltage …………………………… 5-48V
l Power …………………………………… 75-120W

General Characteristic

l Switching frequency …………………… 160-200 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output:>1500 VDC/1min(leakage current<5mA)
Input-case: >1050 VDC/1min(leakage current<5mA)
Output-case: >500 VDC/1min
l Environmental Characteristic
Case temperature …………………… Industry: -25-+85°C; JⅠ: -40~ +85°C;
Storage temperature …………………… Industry: -45~ +105°C; J: -55~ +105°C

Input V. (Vdc)			Input V. range (vdc)	Output V.(V)	Output Curr.(A)	Ripple (mv)	Efficieency (Typ)	Models
SING	24	18-36	12	20	120	88%	PDB240-24S12-D2
		24	18-36	24	12.5	200	89%	PDB300-24S24-D2
		48	36-72	12	20.8	120	88%	PDB250-48S12-D2
		48	36-72	24	12.5	200	89%	PDB300-48S24-D2
		110	66-154	12	20	120	88%	PDB240-110S12-D2
		110	66-154	24	12.5	200	89%	PDB300-110S24-D2
		110	66-154	48	6.25	300	89%	PDB300-110S48-D2
DUAL	24	18-36	05&24	15&4.16	100&200	84%	PDB175-24D05&24-D2
DUAL		24	18-36	24&24	6.25&4	120&200	84%	PDB175-24D12&24-D2

Product Features

Product Application

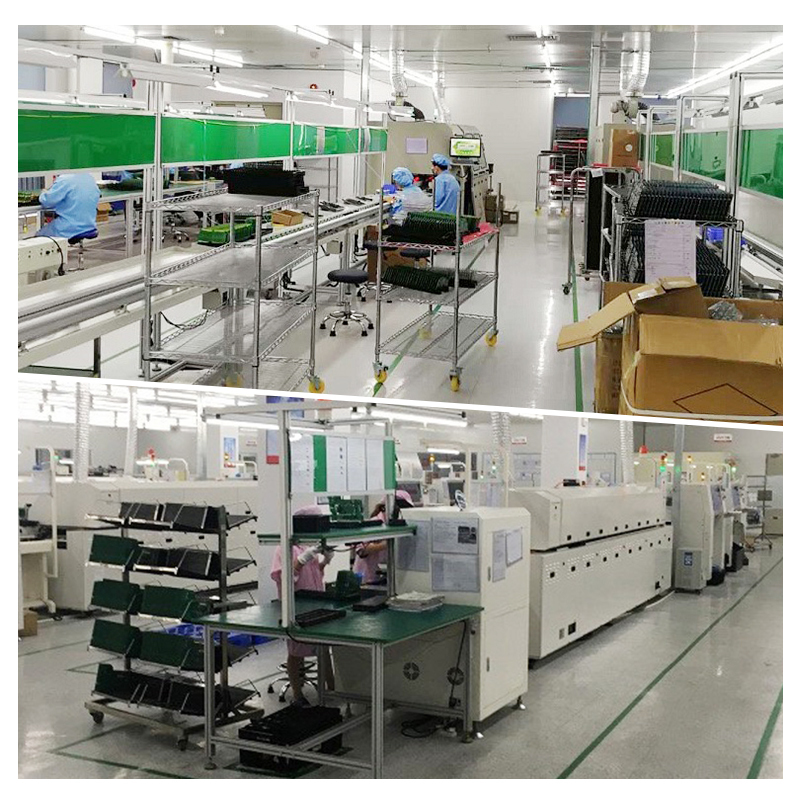

Company Profile

00:14

Why Choose Us

FAQ

1. Who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(20.00%),Eastern Europe(15.00%),Western Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Mid East(6.00%),Eastern Asia(5.00%),South Asia(5.00%),South America(4.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
ACDC Converter,DC DC Converter,EV on board charger,battery charger,Power Supply

4. Why should you buy from us not from other suppliers?
We are a manufacturer specializing in power product development, design, production, sales and service company. We has independent research and development of AC/DC, DC/DC switching power supply and EV on board charger. Various products are widely used.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Korean
