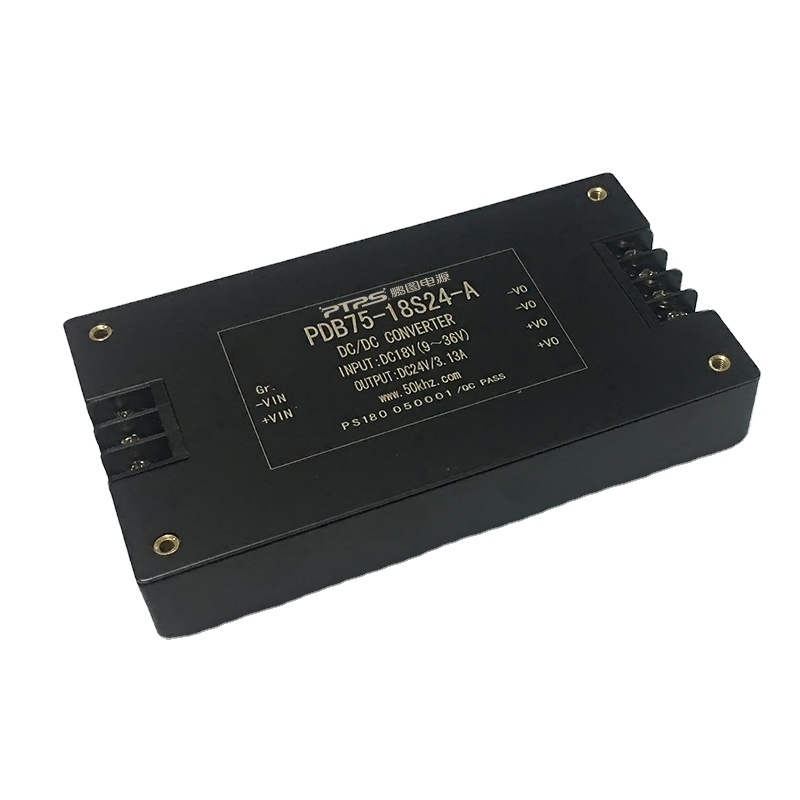

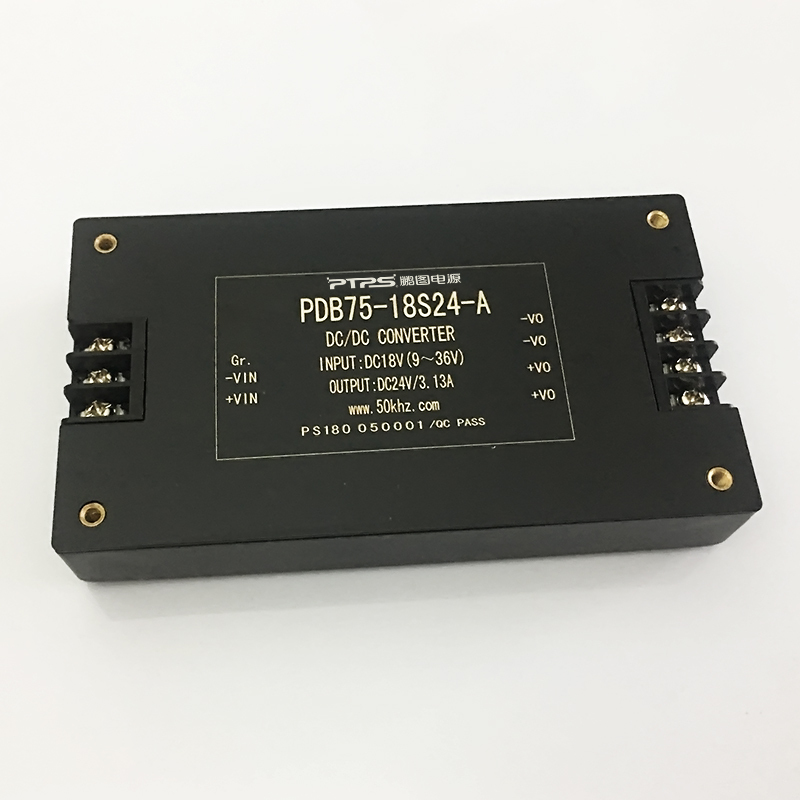

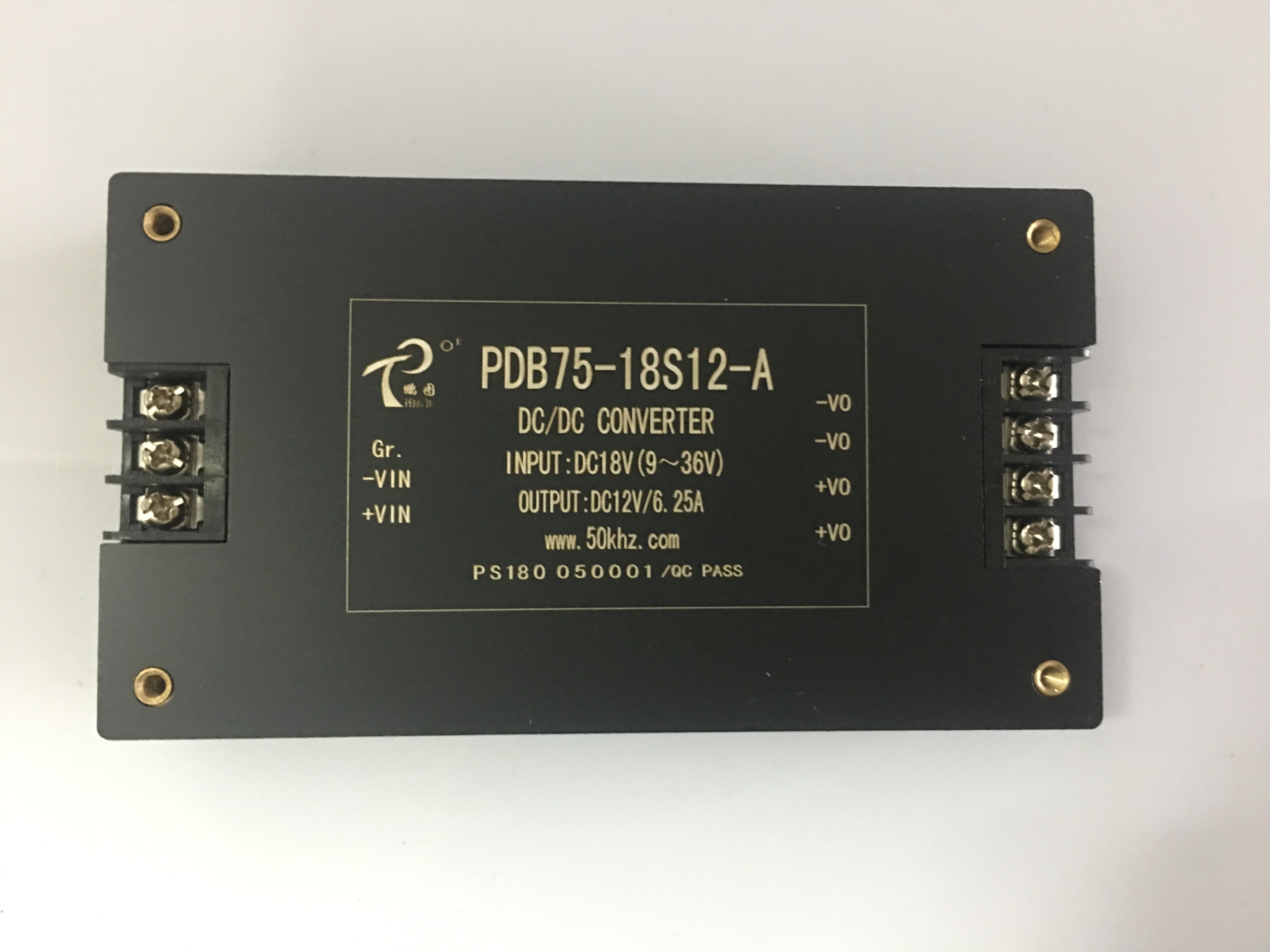

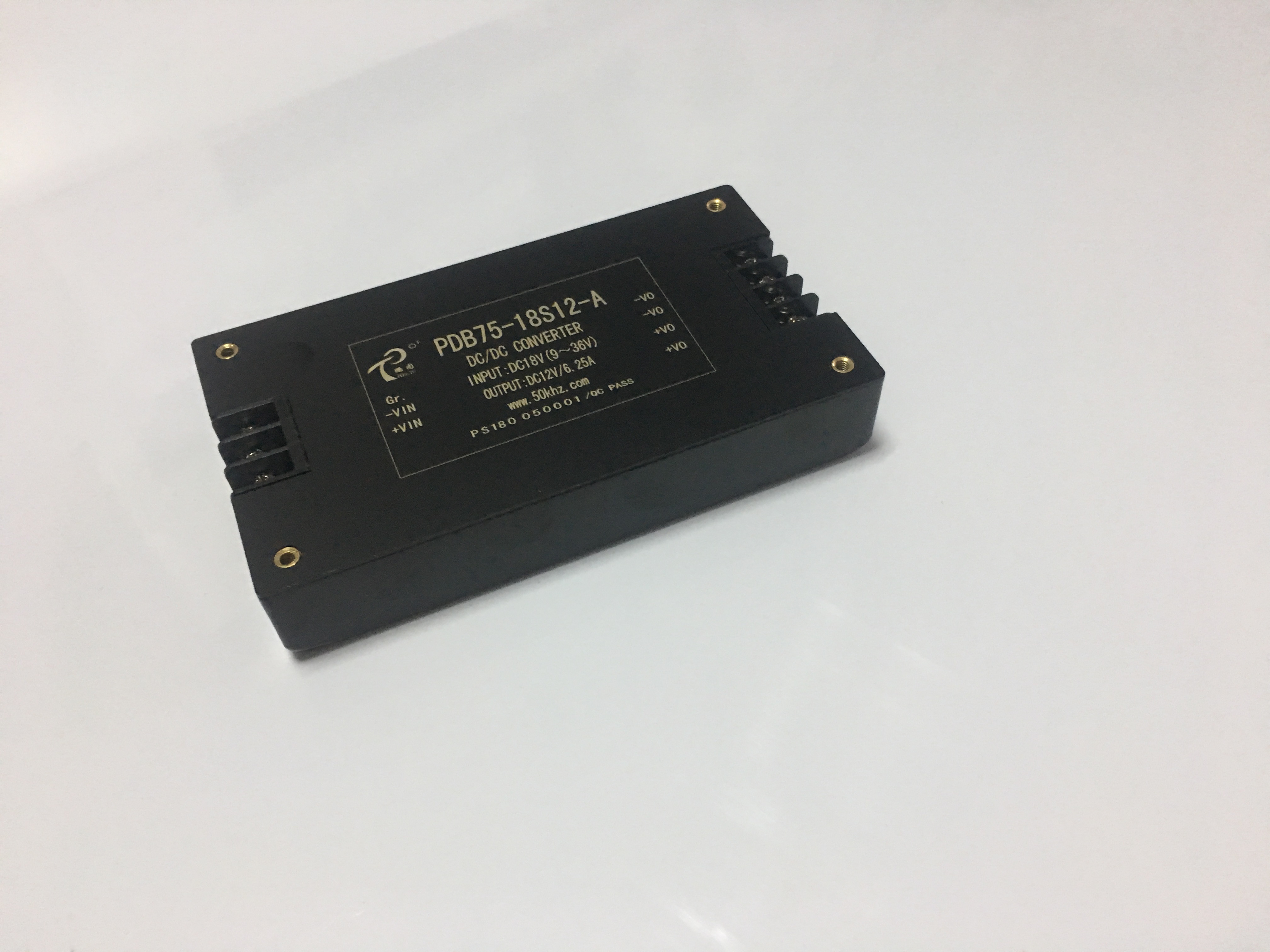

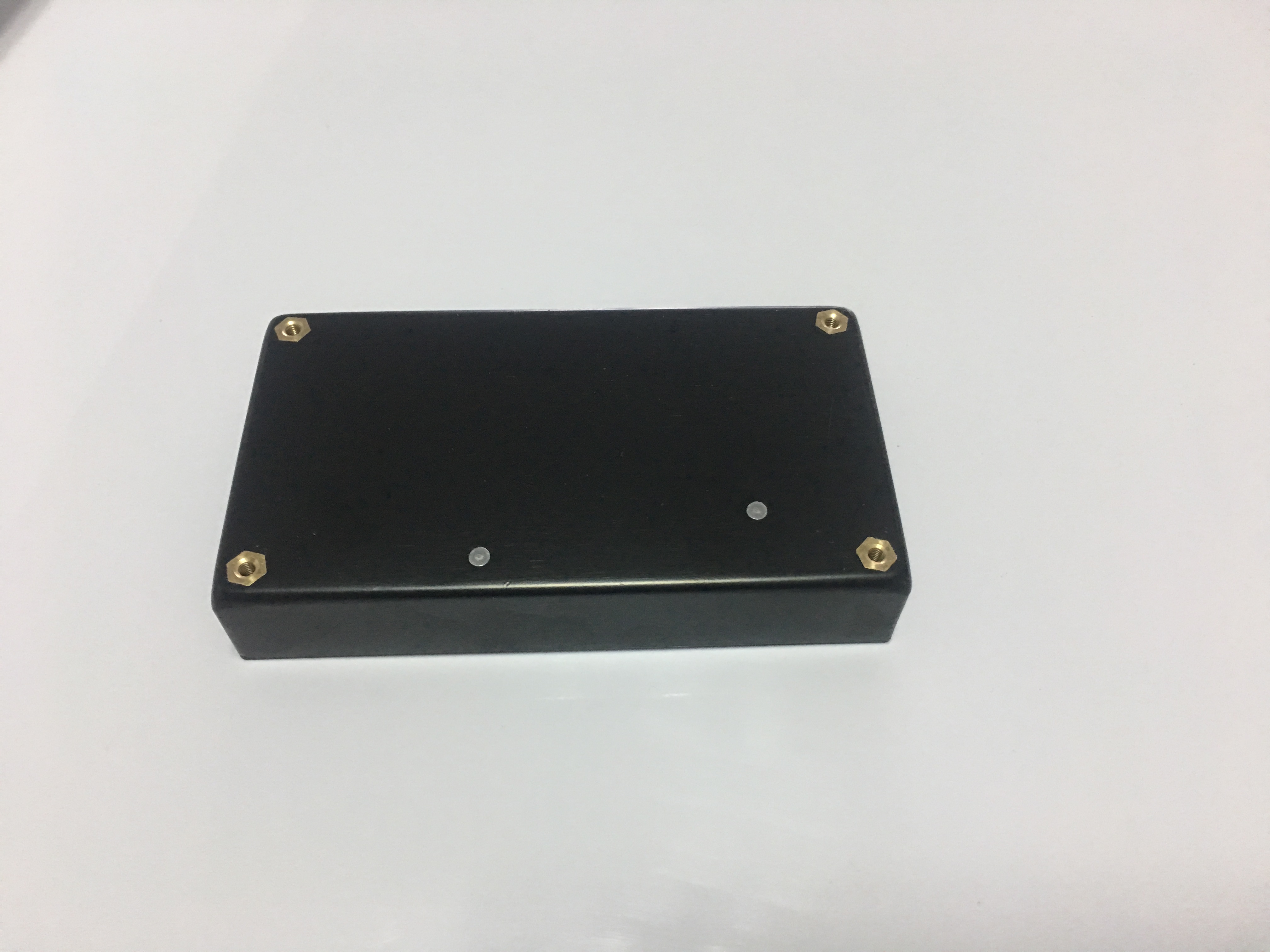

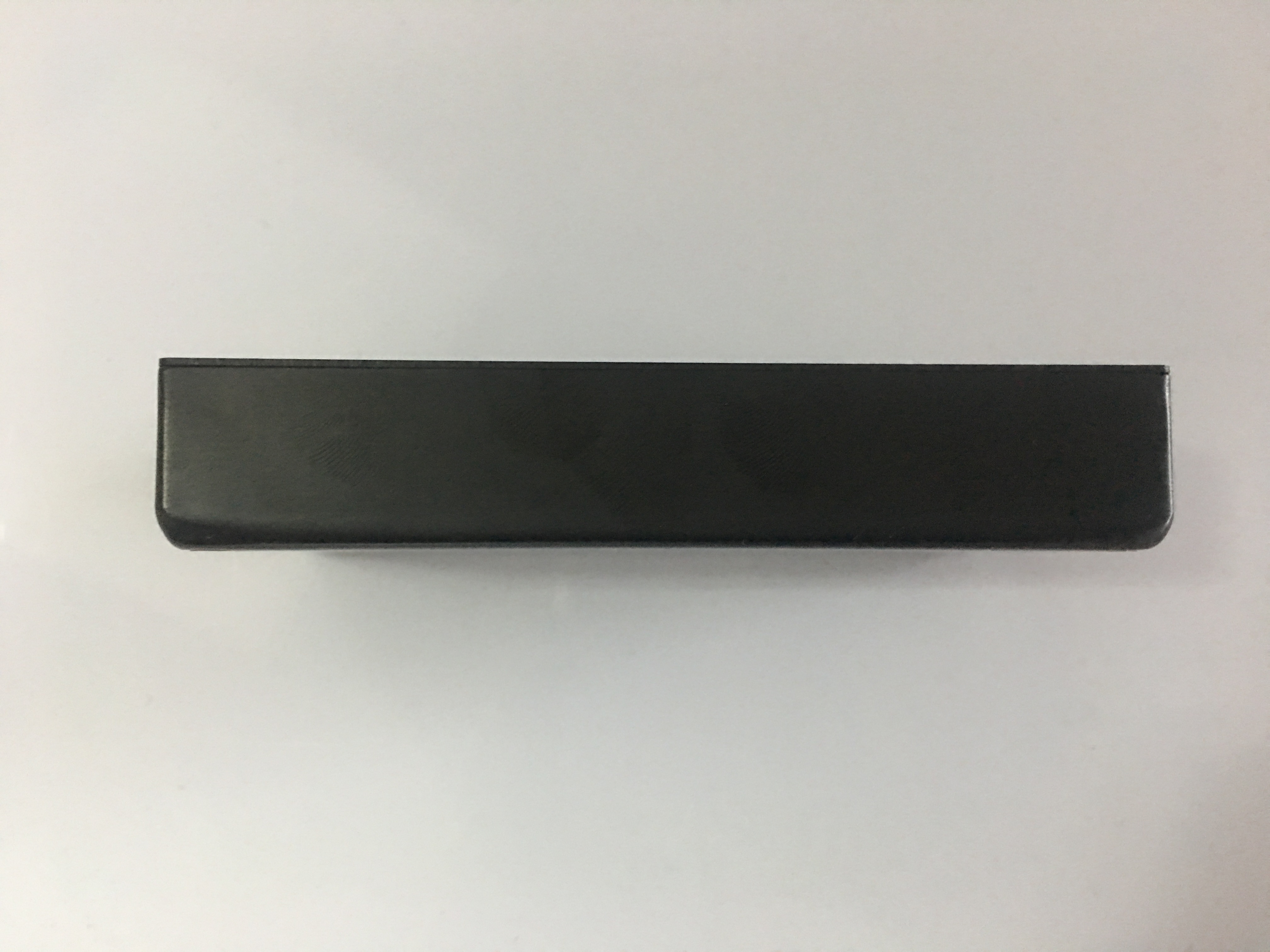

PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module

SKU: 105761707445
0.0 (0)
0 Sold
$32.15 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Color:
    Black
  • Output Power:
    75~120W
    Please select the information you wantX
Quantity:
Add to Favorites (0)
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
1/1
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • PDB-A/A1 Series 12V to 24V DC Step up Converter | 300W High Efficiency Boost Power Module
  • Description

Key attributes

Input Voltage
12~110V
Output Current
1~10A
Output Voltage
5~28V
Place of Origin
Jiangsu, China
Model Number
PDB-A/A1 Series
Brand Name
PengTu 12v to 24v dc step up converter
Output Frequency
160~200KHz
Output Type
Single or Dual
Warranty
2 years
Color
black

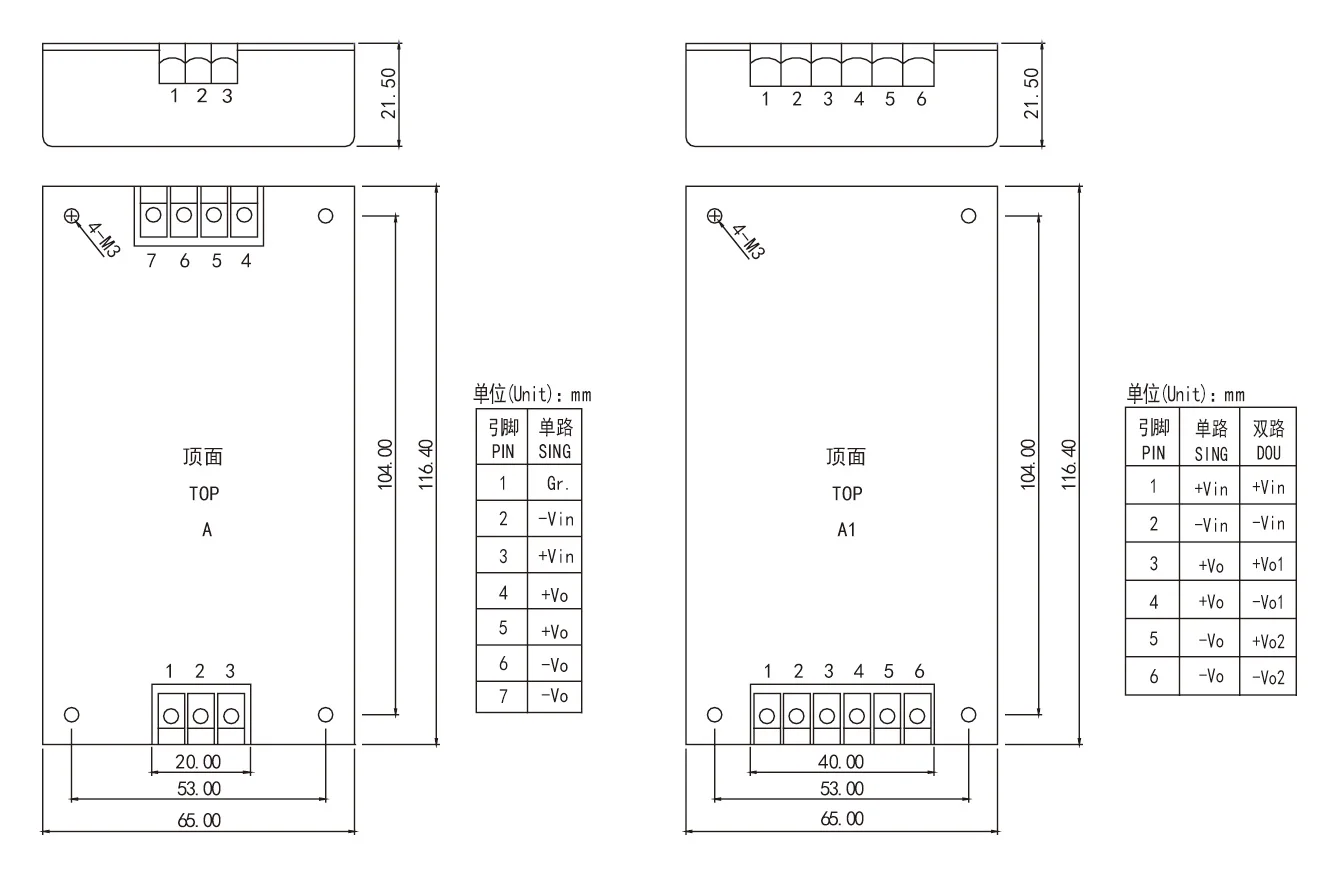

Dimension
116.4*65*21.5mm
Product Name
12v to 24v dc step up converter

Packaging and delivery

Selling Units
Single item
Package size per batch
20X18X16 cm
Gross weight per batch
2.000 kg

Product descriptions from the supplier

Video Description

00:17/00:17
Products Description
Model Number
PDB-A/A1 Series
Output Power
75~120W
Output Type
Single or Dual
Input Voltage
12~110V
Output Voltage
5~28V
Output Frequency
160~200KHz
Output Current
1~10A
Product Name
24vdc to 24vdc 3a 75W power converter
Warranty
2 years
Color
black
Dimension
116.4*65*21.5mm
Product Specifications

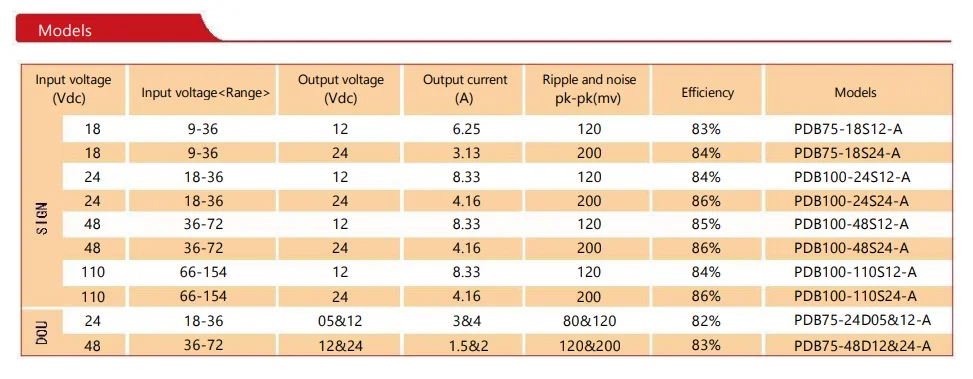

Input Characteristic

l Inputvoltage range…………………… 9 ~ 18 VDC Rated value: 12VDC
18 ~ 36 VDC Rated value: 24VDC
36 ~ 72 VDC Rated value: 48VDC
70 ~ 140 VDC Rated value: 110VDC
9 ~ 36 VDC Rated value: 18VDC
Reverse Protection
Fuse Outside

Output Characteristic

l Voltage set-point accuracy ………………±1%
l Line regulation(main) …………...........…±0.2%
l Load regulation(main) …………….......…±0.4%
l Temperature coefficient …………….......±0.01%/°C
l Output current limiting …………........… 120%(Typ)
l Dynamic response ……………………… 400μs
l Output current …………………………… 2-10A
l Output voltage …………………………… 5-48V
l Power …………………………………… 75-120W


General Characteristic

l Switching frequency …………………… 160-200 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output:>1500 VDC/1min(leakage current<5mA)
Input-case: >1050 VDC/1min(leakage current<5mA)
Output-case: >500 VDC/1min
l Environmental Characteristic
Case temperature …………………… Industry: -25-+85°C; JⅠ: -40~ +85°C;
Storage temperature …………………… Industry: -45~ +105°C; J: -55~ +105°C
