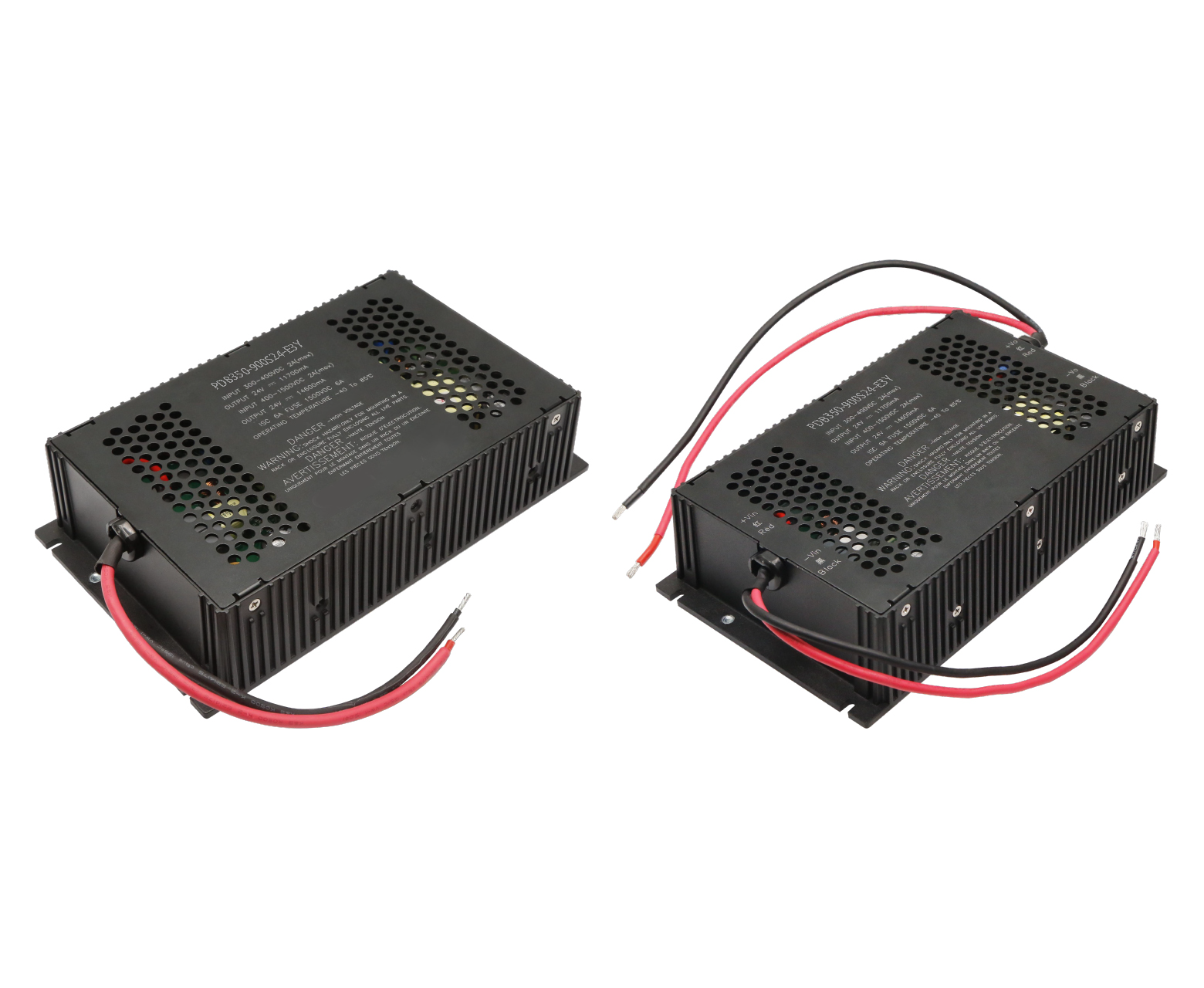

PDB-E3Y Series 250-350W

Name: PDB-E3Y Series 250-350W
Brand: MY SHOP
SKU: 1601582568316
Price: 55 USD
Availability: OutOfStock

0.0 (0)

0 Sold

$55.00

The 250W Ultra-Wide High Voltage Input DC/DC Module Power Supply (PDB-E3Y Series) is a high-efficiency, long-life, and highly reliable regulated power module. It supports an ultra-wide input voltage range of 200/300~1500VDC and features input-output isolation, under-voltage protection, reverse connection protection, output overcurrent protection, and short-circuit/overvoltage protection. Fully tested under 100% full-load aging conditions, it operates reliably in temperatures from -40℃ to +85℃. Widely applicable in photovoltaic power generation, PV inverters, energy storage systems, industrial control, and various civil applications, it provides stable and dependable working voltage for load devices.

Item	Input voltage range	Output voltage	Output current	Size
PDB250-900S12-E3Y	200-1500VDC	12V	20.9A	21512550MM
PDB350-900S24-E3Y	300-1500VDC	24V	14.6A
PDB350-900S28-E3Y		28V	12.5A
PDB350-900S32-E3Y		32V	10.95A
PDB350-900S48-E3Y		48V	7.3A

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Color:

Black
Output Power:

250W

350W
Input voltage:

200-1500V

300-1500V
Output voltage:

12V

24V

28V

32V

48V
Output current:

20.9A

14.6A

12.5A

10.95A

7.3A

Quantity:

Add to Favorites (0)

1/1

Description

Key attributes

Phase	Single Phase	Output Frequency	160-200KHZ
Type	DC/DC Converter	Place of Origin	Jiangsu, China
Brand Name	Pengtu	Model Number	PDB-E3Y Series
Size	21512550mm	Input Voltage	200~1500VDC
Warranty	2 years	Output Current	2-20A
Certificate	CE,RoHs, ect	Output Voltage	12-48V

Packaging and delivery

Selling Units	Single item	Single package size	28X25X12cm
Single gross weight	8.000 kg

The 150W Ultra-Wide High Voltage Input DC/DC Module Power Supply (PDB-TY Series) is a high-efficiency, long-life, and highly reliable regulated power module. It supports an ultra-wide input voltage range of 200/300~1500VDC and features input-output isolation, under-voltage protection, reverse connection protection, output overcurrent protection, and short-circuit/overvoltage protection. Fully tested under 100% full-load aging conditions, it operates reliably in temperatures from -40℃ to +85℃. Widely applicable in photovoltaic power generation, PV inverters, energy storage systems, industrial control, and various civil applications, it provides stable and dependable working voltage for load devices.

Key Features:
* Ultra-wide input voltage: 200/300~1500VDC
* Input-output isolation
* Input under-voltage and reverse connection protection
* Output overcurrent, short-circuit, and overvoltage protection
* High efficiency, long life, high reliability
* Operating temperature: -40℃ ~ +85℃
* 100% full-load aging tested

Input Characteristic

250~1500VDC

Output Characteristic

Voltage set-point accuracy ……………… ±2%
Output voltage range………………………±10%
Line Regulation (Main) ……….........……… ±0.5%
Load regulation (Main) ………........…..........±0.5%
Output Current Limited ................................. 120% (Typ)
Output current …………………………………2-20A for optional
Output voltage …………………………………12-48V
Power ……………………………………………250-350W

General Characteristic

Switching frequency …………………… 160-200 KHz
Isolation resistance …………………… 200 MΩ
Isolation voltage
Input-output: >1500 VDC
Input-case: >1050 VDC
Output-case: >500 VDC
Environmental Characteristic
Substrate Working Temperature ………Industry: -25-+85℃
I: -40-+85℃

Storage temperature …………………… Industry: -45~ +105℃

J: -55-+105℃

Item	Input voltage range	Output voltage	Output current	Size
PDB250-900S12-E3Y	200-1500VDC	12V	20.9A	21512550MM
PDB350-900S24-E3Y	300-1500VDC	24V	14.6A
PDB350-900S28-E3Y		28V	12.5A
PDB350-900S32-E3Y		32V	10.95A
PDB350-900S48-E3Y		48V	7.3A
