Home > Solar PV Power Supply > PDB-T1Y Series

1/1

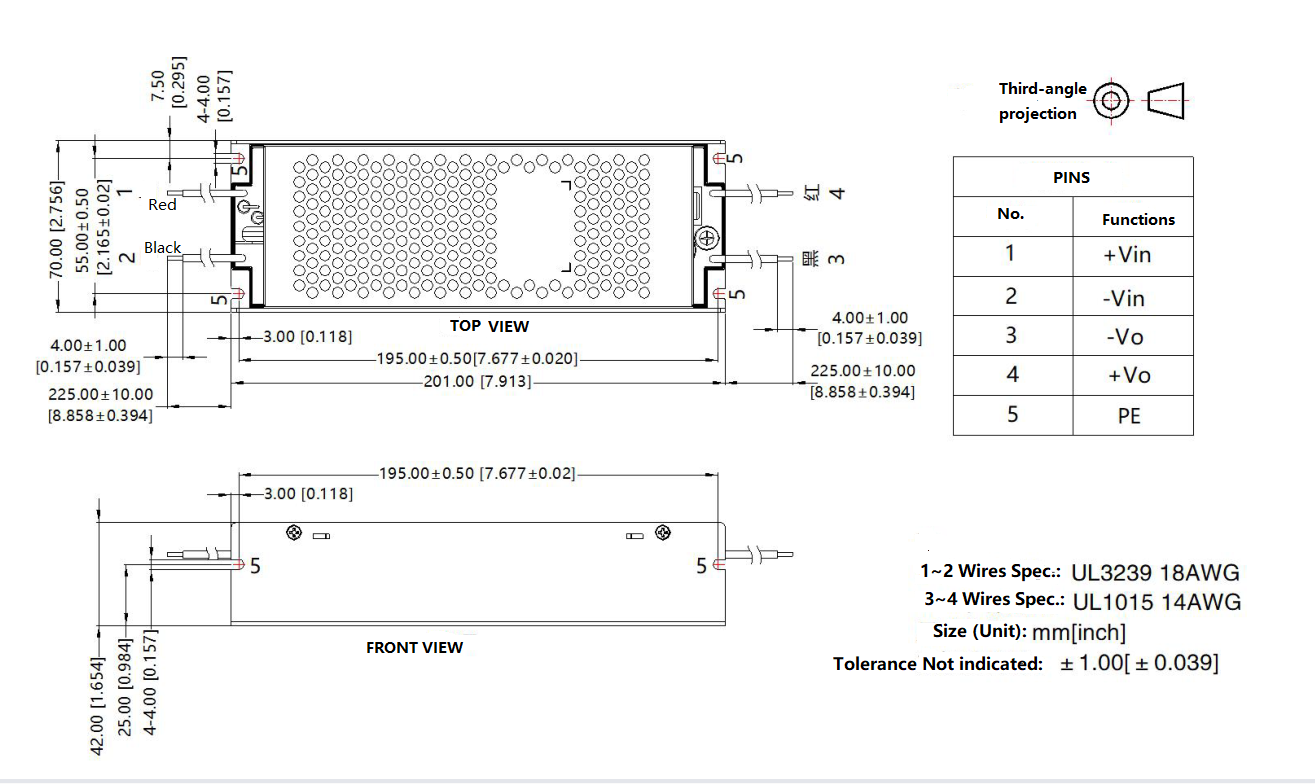

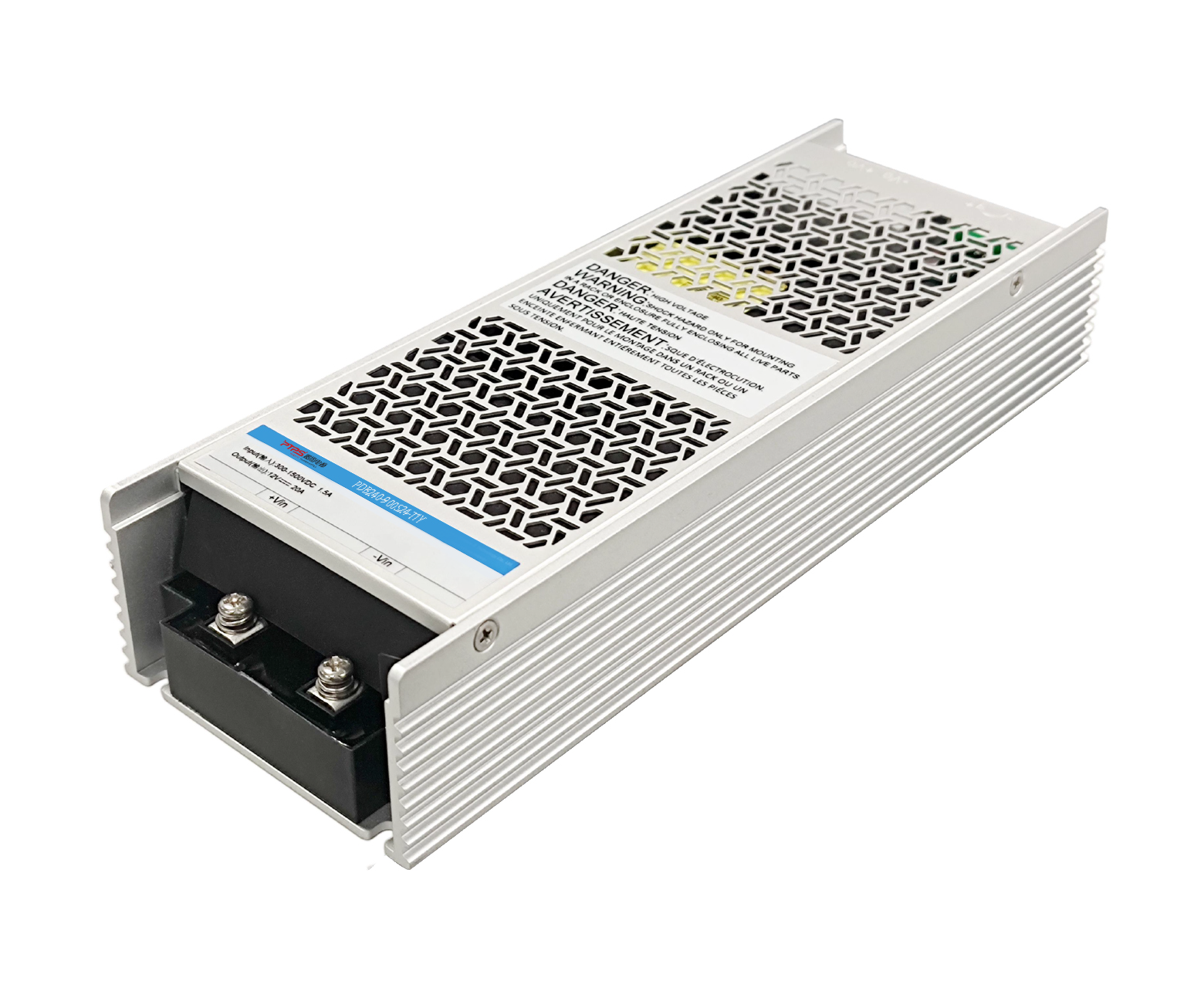

PDB-T1Y Series 240-350W

Name: PDB-T1Y Series 240-350W
Brand: MY SHOP
SKU: 1601578149097
Price: 36 USD
Availability: OutOfStock

0.0 (0)

0 Sold

$36.00

The PDB-T1Y Series DC/DC converter modules are designed with ultra-wide high-voltage input, high efficiency, long service life, and excellent reliability. Complying with EN/IEC 62109 standards and referencing UL1741 requirements, these modules are well-suited for demanding applications such as photovoltaic (PV) power generation, solar inverters, energy storage systems, industrial control, and civil electronic equipment. They ensure stable and safe DC power supply for critical loads in harsh environments.

Item	Input voltage range	Output voltage	Output current	Size
PDB240-900S12-T1Y	200-1500VDC	12V	20A	234.58142MM
PDB350-900S24-T1Y	300-1500VDC	24V	14.6A	234.58142MM
PDB350-900S28-T1Y	300-1500VDC	28V	12.5A	234.58142MM
PDB350-900S48-T1Y	300-1500VDC	48V	7.3A	234.58142MM

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Color:

Black
Output Lines:

Single
Input voltage:

200-1500

300-1500
Output voltage:

12V

24V

28V

48V
Output current:

20A

14.6A

12.5A

7.3A

Quantity:

Add to Favorites (0)

1/1

Description

Key attributes

Phase	Single Phase	Output Frequency	160-200KHZ
Type	DC/DC Converter	Place of Origin	Jiangsu, China
Brand Name	Pengtu	Model Number	PDB-T1Y Series
Size	234.581 42MM	Input Voltage	100~1300V
Warranty	2 years	Output Current	7~20A
Certificate	CE,RoHs, ect	Output Voltage	12~48V

Packaging and delivery

Selling Units	Single item	Single package size	28X25X12cm
Single gross weight	5.000 kg

The PDB-T1Y Series DC/DC converter modules are designed with ultra-wide high-voltage input, high efficiency, long service life, and excellent reliability. Complying with EN/IEC 62109 standards and referencing UL1741 requirements, these modules are well-suited for demanding applications such as photovoltaic (PV) power generation, solar inverters, energy storage systems, industrial control, and civil electronic equipment. They ensure stable and safe DC power supply for critical loads in harsh environments.

Key Features:
* Ultra-wide high voltage input: 300~1500VDC (withstand up to 1700VDC transient for 10s)
* Input-output isolation for enhanced safety and stability
* Comprehensive protection: input under-voltage, reverse polarity, output over-current, short-circuit, and over-voltage
protection
* High efficiency & reliability: 100% full-load burn-in tested for long-term stability
* Wide operating temperature: -40℃ ~ +85℃, suitable for harsh environments
* Scalable power: supports 3+1 parallel operation with current sharing, maximum expandable power up to 1400W

Applications:
* Photovoltaic power generation systems
* Solar inverters and hybrid power systems
* Battery energy storage solutions
* Industrial automation and control
* Smart grid and distributed power supply
* Telecom and data center backup systems

Reliable DC/DC power module with ultra-wide input range up to 1500VDC, designed for solar, energy storage, and industrial systems.
Offers high efficiency, robust protection, and expandable power up to 1400W with parallel operation. Perfect choice for demanding renewable energy and industrial applications.

Input Characteristic

300~1500VDC

Output Characteristic

Voltage set-point accuracy ……………… ±2%
Output voltage range………………………±10%
Line Regulation (Main) ……….........……… ±0.5%
Load regulation (Main) ………........…..........±0.5%
Output Current Limited ................................. 120% (Typ)
Output current …………………………………2-20A for optional
Output voltage …………………………………5-48V
Power ……………………………………………100W

General Characteristic

Switching frequency …………………… 160-200 KHz
Isolation resistance …………………… 200 MΩ
Isolation voltage
Input-output: >1500 VDC
Input-case: >1050 VDC
Output-case: >500 VDC

Environmental Characteristic：
Substrate Working Temperature ………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
Storage temperature …………………… Industry: -45~ +105℃

Military: -55-+105℃

Item	Input voltage range	Output voltage	Output current	Size
PDB240-900S12-T1Y	200-1500VDC	12V	20A	234.58142MM
PDB350-900S24-T1Y	300-1500VDC	24V	14.6A	234.58142MM
PDB350-900S28-T1Y	300-1500VDC	28V	12.5A	234.58142MM
PDB350-900S48-T1Y	300-1500VDC	48V	7.3A	234.58142MM
